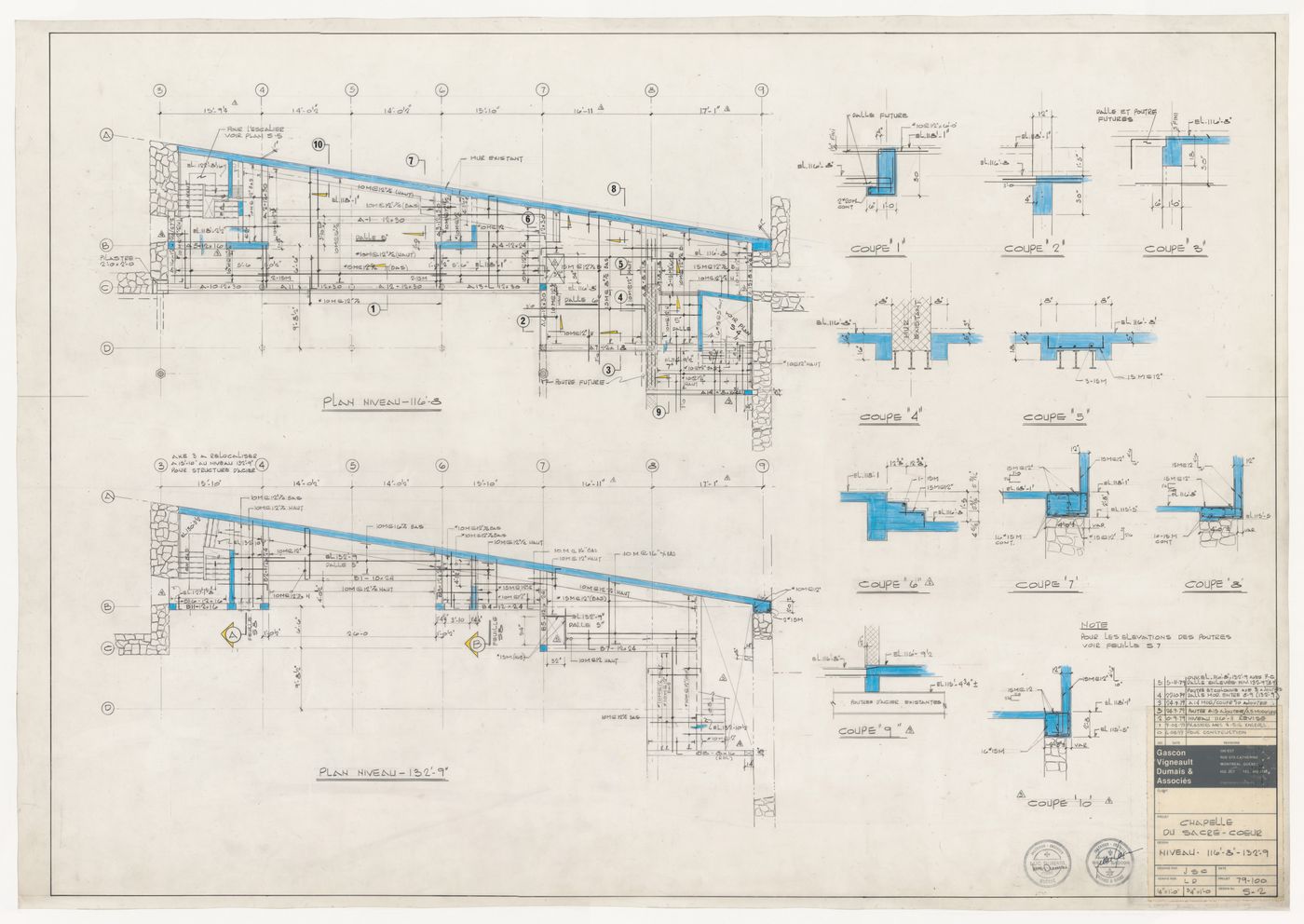

Plans and sections for construction details for the reconstruction of the Chapelle du Sacré-Coeur, Notre-Dame de Montréal

Part of:

People:

Gascon Vigneault Dumais & Associés (draughtsman)
Gascon Vigneault Dumais & Associés (engineering firm)
Jodoin, Lamarre, Pratte et Associés, architectes (architectural firm)
James O'Donnell (architect)
Fabrique de Notre Dame (archive creator)

Title:

Plans and sections for construction details for the reconstruction of the Chapelle du Sacré-Coeur, Notre-Dame de Montréal

Date:

1979

Form:
drawings

Quantity / Object type:
1 drawing(s)

Stage and Purpose:

working drawings
construction drawings
technical drawings
detail drawings
structural drawings

Technique and media:

Pen and black ink and black pencil with blue pencil and yellow die applied to the verso of the drawing

Dimensions:

sheet: 86.6 x 125.5 cm

Reference number:

AR1996:1001:349:025

Drawing Type:

line drawings
mechanical drawings (tool-aided drawings)

Method of Projection:

plans (drawings)
sections (orthographic drawings)

Point of View:

general views
interior views
plan views

Physical characteristics and technical requirements:

- Part of the inscription has been prepared on plastic film and applied to the verso of the drawing. A line border frames the drawing.

Inscription:

inscribed - by an unknown hand, in black pencil, throughout: with measurements and specifications stamped, numbered and signed - in black ink, l.r.: "INGÉNIEUR - ENGINEER / LUC DUMAIS / 17685 / QUÉBEC [whithin a circle with fleur-de-lis symbol]"; in graphite: with signature; "INGÉNIEUR - ENGINEER / GILLES GASCON / QUÉBEC [whithin a circle with maple leaf and fleur-de-lis symbols]"; and in pen and black ink: with signature labelled, numbered, dated, inscribed and imprinted - by unknown hands, in black pencil, on plastic film label attached to the verso, l.r.: "5 5-11-79 ouv. el. 116'-8"-132'-9 axes 7-c / dalle enlevée niv. 132-9" (8-9)"; "4 22-10-79 poutre et colonne axe 3 ajoutees / dalle mod. entre 8-9 (132'-9")"; "3 24-9-79 a14 mod./coupe # 10 ajoutee."; "3 24-9-79 poutre a15 ajoutee./a5 modifiee"; "2 10-9-79 niveau 116'-11 revise"; "1 9-08-79 pilastres axes 4-5-6 enleves."; and "0 6-08-79 pour construction"; and in black ink: "no date revisions" labelled and imprinted - in black ink, on plastic film label attached to the verso, l.r.:"Gascon / Vigneault / Dumais & / Associés"; and "506 EST / RUE STE-CATHERINE / MONTRÉAL, QUÉBEC / H2L 2C7 TEL. 842-2746 / Ingénieurs conseils" labelled, imprinted and inscribed - in black ink, on plastic film label attached to the verso, l.r.: "client / projet / dessin"; and by an unknown hand, in black pencil: with title labelled, imprinted, inscribed and numbered - in black ink, on plastic film label attached to the verso, l.r.: "dessine par: / date / verifie par: / projet / dessin no"; and by an unknown hand, in black pencil: "JSC"; "LD"; "79-100"; and "S-2"

Location:

Montréal Island of Montréal Québec Canada

Subject:

architecture
engineering

Credit line:
Fonds de la Fabrique Notre-Dame de Montréal, en dépôt au CCA/
Fonds de la Fabrique Notre-Dame de Montréal, on deposit at the CCA

Folder Number:

99-00-40
