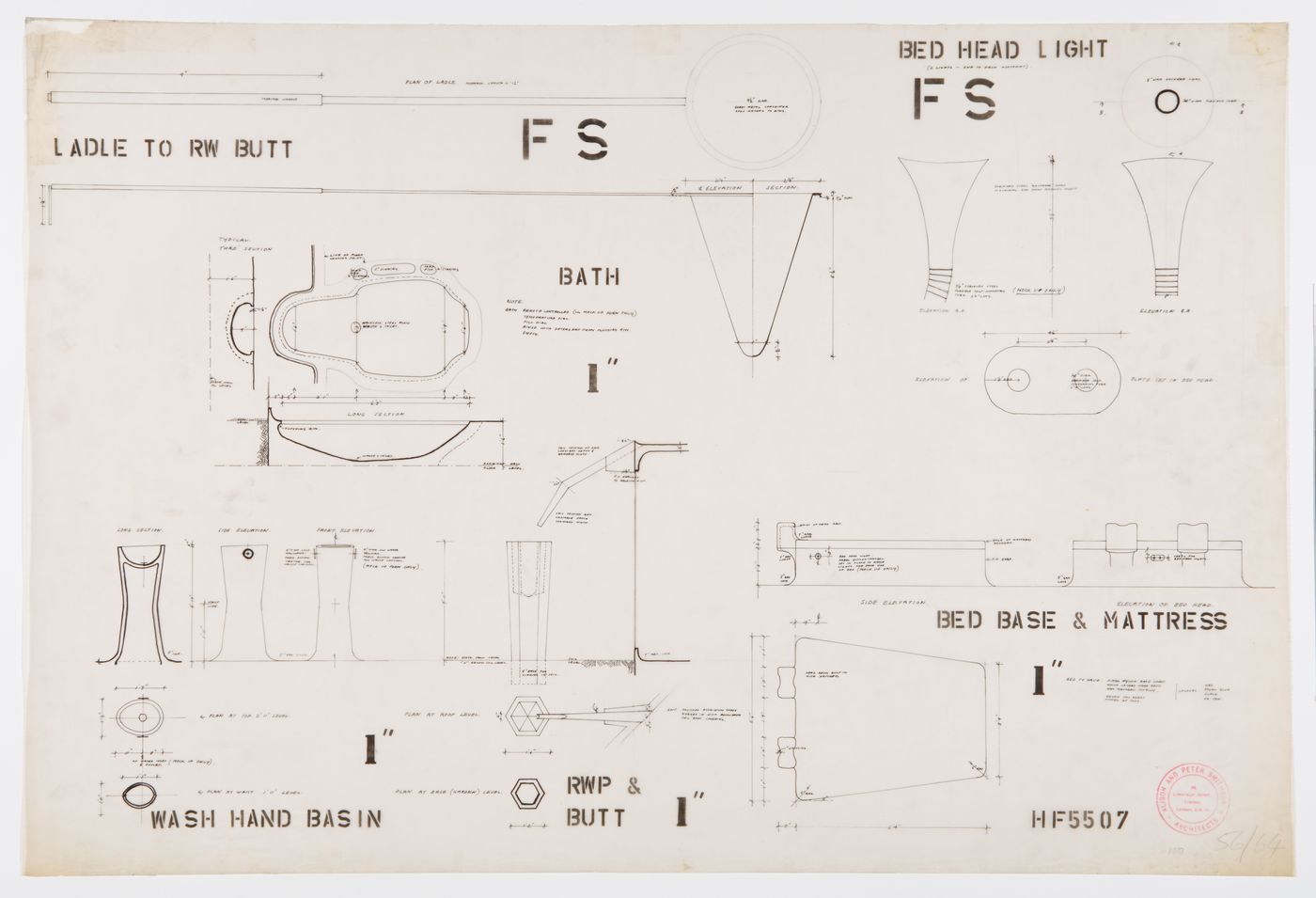

Plans, sections, elevations and details for the bathtub, downspout, rain butt, washbowl, bed lamps and bed, House of the Future, Daily Mail Ideal Homes Exhibition, London, England

People:

Peter Smithson (architect)
Alison Margaret Smithson (architect)

Title:

Plans, sections, elevations and details for the bathtub, downspout, rain butt, washbowl, bed lamps and bed, House of the Future, Daily Mail Ideal Homes Exhibition, London, England

Date:

between 1955 and March 6 1956

Form:
drawings

Quantity / Object type:
1 drawing(s)

Stage and Purpose:

design development drawing

Technique and media:

Pen and black ink with some graphite and red ink on tracing paper

Dimensions:

sheet: 71.8 x 106.4 cm

Reference number:

DR1995:0016

Drawing Type:

line drawings
mechanical drawings (tool-aided drawings)
freehand drawings

Method of Projection:

plans (drawings)
sections (orthographic drawings)
exterior elevations

Point of View:

exterior views
interior views
plan views

Physical characteristics and technical requirements:

- Pinholes in each corner. Tears at u.l., u.c., u.r. and c.r. have been repaired with transparent tape. There is wrinkling from water at l.l. and l.r.

Inscription:

stamped - in red ink, on the sheet, l.r.: "ALISON AND PETER SMITHSON - ARCHITECTS -"; and "46. / Limerston Street, / Chelsea, / London, S.W.10." [the stamp consists of two circles, the outer circle contains the architects' names and the inner circle contains the address] inscribed and numbered - by an unknown hand, in pen and black ink, on the sheet, throughout: with drawing titles; and l.r.: "HF5507" inscribed - by the draughtsman, in pen and black ink, on the sheet, throughout: with specifications, notes and measurements numbered - by unknown hands, in graphite, on the sheet, l.r.: "100" and "56/64"

Location:

London; England; United Kingdom;

Subject:

architecture
interior design
engineering

Subject Descriptive Terms:

bed (furniture)
bathtub
downspout
butt
gooseneck lamps
mattress
washbowl

Credit line:
Collection Centre Canadien d'Architecture/
Canadian Centre for Architecture, Montréal
