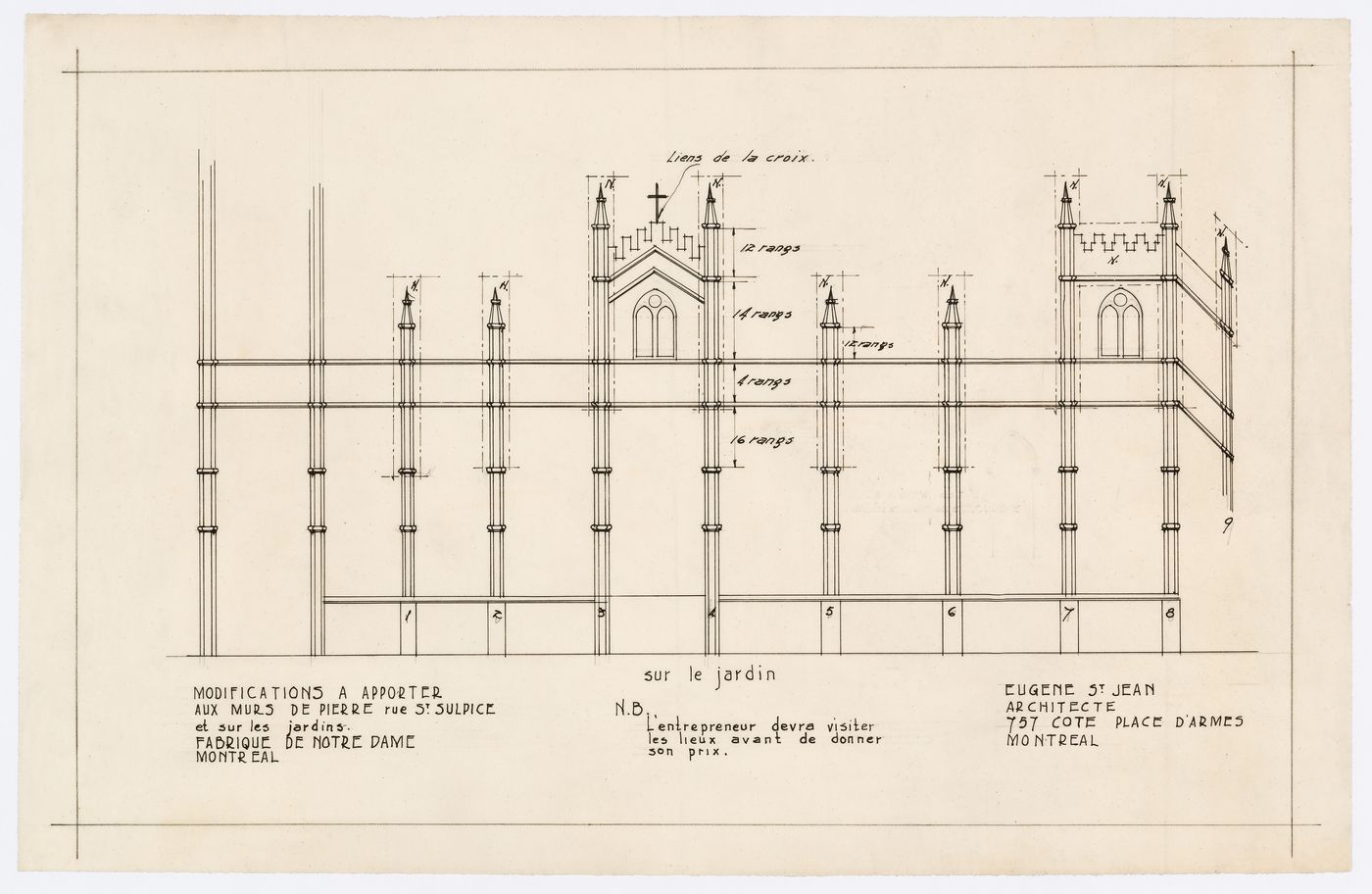

Lateral exterior elevation for Notre-Dame de Montréal, apparently for the renovations of 1929-1949

Part of:

People:

Eugène Saint-Jean (draughtsman)
Eugène Saint-Jean (architect)
James O'Donnell (architect)
Fabrique de Notre Dame (archive creator)

Title:

Lateral exterior elevation for Notre-Dame de Montréal, apparently for the renovations of 1929-1949

Date:

1929-1949

Form:
drawings

Quantity / Object type:
1 drawing(s)

Stage and Purpose:

design drawing
working drawing

Technique and media:

Pen and black ink over graphite and graphite

Dimensions:

sheet: 24.0 x 37.3 cm

Reference number:

AR1996:1001:306

Drawing Type:

line drawing
mechanical drawing (tool-aided drawing)

Method of Projection:

elevation (drawing)

Point of View:

partial view
exterior view

Physical characteristics and technical requirements:

- There are traces of inscriptions and drawing of a window in graphite in various locations of the drawing.

Inscription:

inscribed - by the draughtsman ? in pen and black ink, l.l.: "MODIFICATIONS A APPORTER / AUX MURS DE PIERRE rue St. SULPICE / et sur les jardins. / FABRIQUE DE NOTRE-DAME. / MONTREAL"; l.c.: with title and "N.B. / L'entrepreneur devra visiter / les lieux avant de donner / son prix."; and l.r.: "EUGENE St. JEAN / ARCHITECTE / 757 COTE PLACE D'ARMES / MONTREAL" inscribed - by the draughtsman ? in pen and black ink, in various locations: "N"; u.c.: "Liens de la croix"; "12 rangs" and "14 rangs"; and c.: "4 rangs"; "12 rangs" and "16 rangs" numbered - by the draughtsman ? in pen and black ink, in various locations: with numbers "1" through "9"

Location:

Montréal Island of Montréal Québec Canada

Subject:

architecture

Credit line:
Fonds de la Fabrique Notre-Dame de Montréal, en dépôt au CCA/
Fonds de la Fabrique Notre-Dame de Montréal, on deposit at the CCA

Folder Number:

99-03-07
