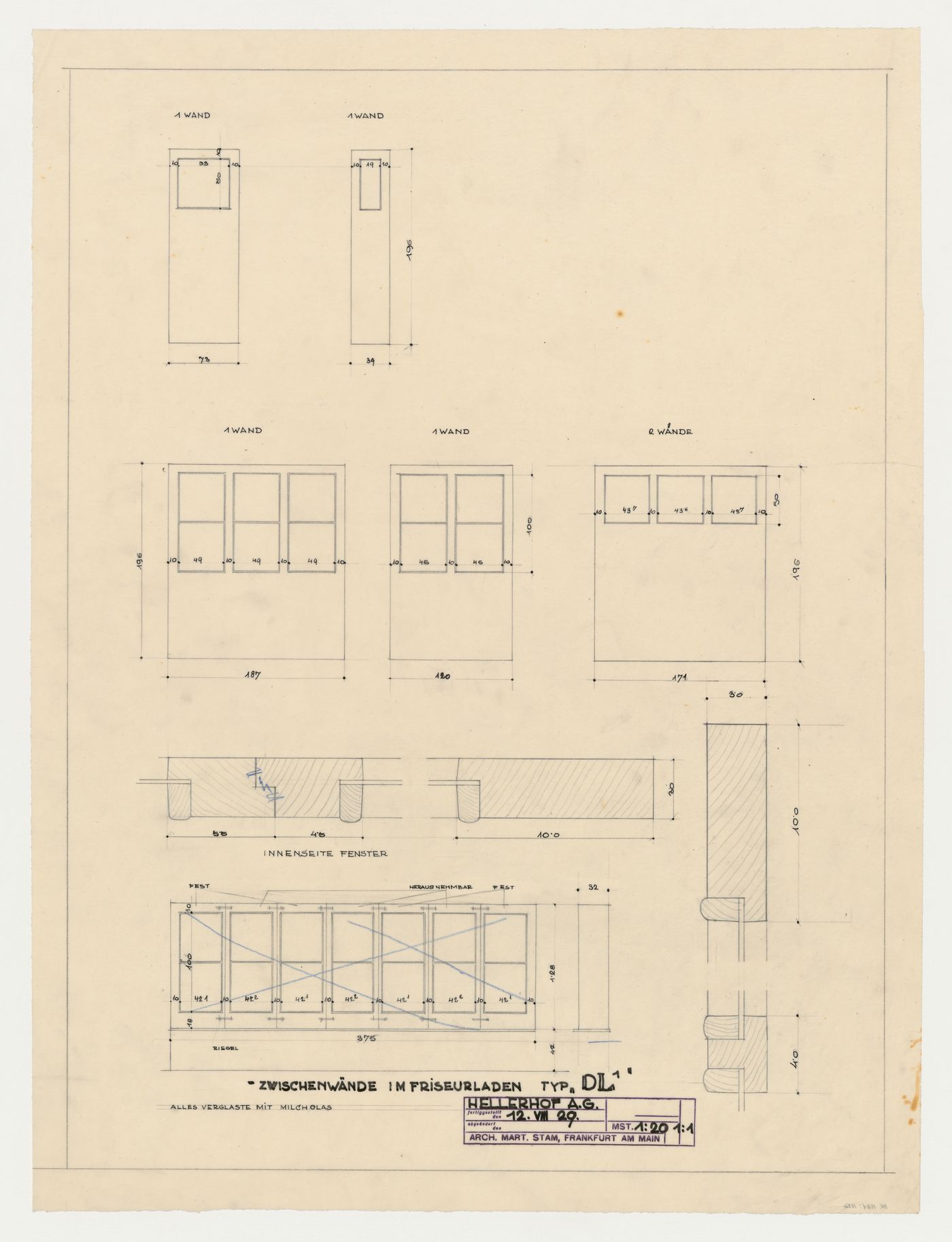

Elevations, and sections for a partition wall in a type DL beauty shop, Hellerhof Housing Estate, Frankfurt am Main, Germany

People:

Mart Stam (draughtsman)
Mart Stam (architect)
Aktiengesellschaft Hellerhof (client)

Title:

Elevations, and sections for a partition wall in a type DL beauty shop, Hellerhof Housing Estate, Frankfurt am Main, Germany

Date:

12 August 1929

Form:
drawings

Quantity / Object type:
1 drawing(s)

Stage and Purpose:

design development drawings

Technique and media:

Graphite

Dimensions:

sheet: 59.7 x 45.5 cm

Reference number:

DR1984:1052

Drawing Type:

line drawings
mechanical drawings (tool-aided drawings)

Method of Projection:

sections (orthographic drawings)
elevations (drawings)

Point of View:

exterior views
interior views

Physical characteristics and technical requirements:

- A graphite border frames the drawing. Blue pencil markings at centre left and lower left of sheet.

Inscription:

inscribed and dated - by the draughtsman, in pen and black ink, l.r.: "ZWISCHENWÄNDE IM FRISEURLADEN TYP ,,DL1'' [partition wall in the hair salon type DL1] / ALLES VERGLASTE MIT MILCHGLAS [blank space] HELLERHOF A.G. [within stamp] / 12.VIII 29. [within stamp] / [with scale within stamp]"; and throughout: with dimensions and specifications stamped - in purple ink, l.r.: "fertiggestellt / den [with date] / abgeändert / den [blank space] MST. [with scale] / ARCH.MART.STAM, FRANKFURT AM MAIN"

Subject:

architecture

Subject Descriptive Terms:

windows
partition

Credit line:
Collection Centre Canadien d'Architecture/
Canadian Centre for Architecture, Montréal
