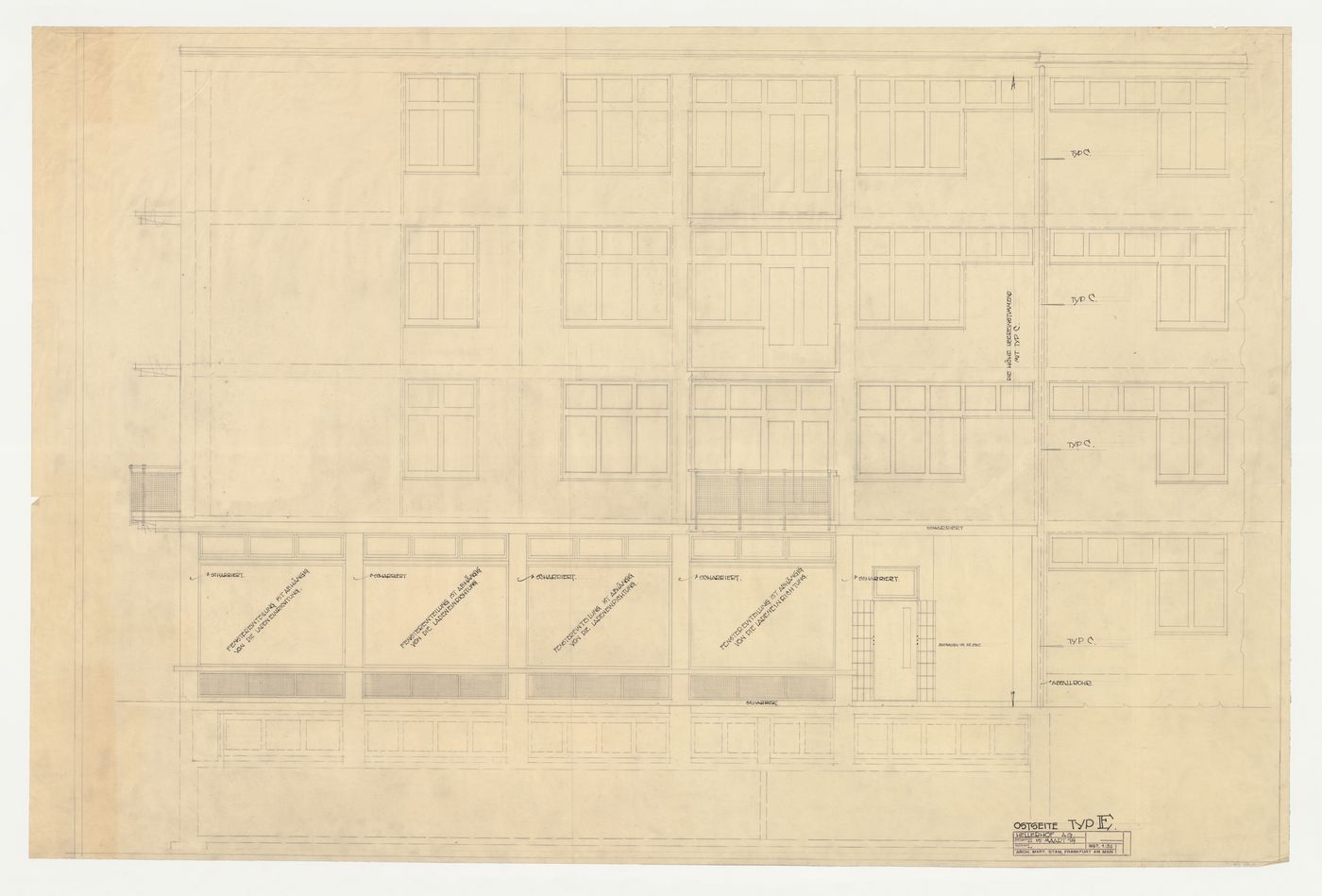

East elevation for a type E store and housing unit, Hellerhof Housing Estate, Frankfurt am Main, Germany

People:

Mart Stam (draughtsman)
Mart Stam (architect)
Aktiengesellschaft Hellerhof (client)

Title:

East elevation for a type E store and housing unit, Hellerhof Housing Estate, Frankfurt am Main, Germany

Date:

15 March 1929

Form:
drawings

Quantity / Object type:
1 drawing(s)

Stage and Purpose:

design development drawing

Technique and media:

Graphite

Dimensions:

sheet: 83.4 x 127.0 cm

Reference number:

DR1984:1077

Drawing Type:

line drawing
mechanical drawing (tool-aided drawing)

Method of Projection:

elevation (drawing)

Point of View:

exterior view

Physical characteristics and technical requirements:

- A double line graphite border frames the drawing. Small tears at centre left of sheet.

Inscription:

stamped - in purple ink, l.r.: "fertiggestellt / den [with date] / abgeändert / den [blank space] MST. [with scale] / ARCH.MART.STAM, FRANKFURT AM MAIN" inscribed and dated - by the draughtsman, in graphite, l.r.: "OSTSEITE TYP E." and "2HELLERHOF A.G. / 15 MAART '29 / [with scale]" [within stamp]; and throughout: with specifications

Subject:

architecture

Credit line:
Collection Centre Canadien d'Architecture/
Canadian Centre for Architecture, Montréal
