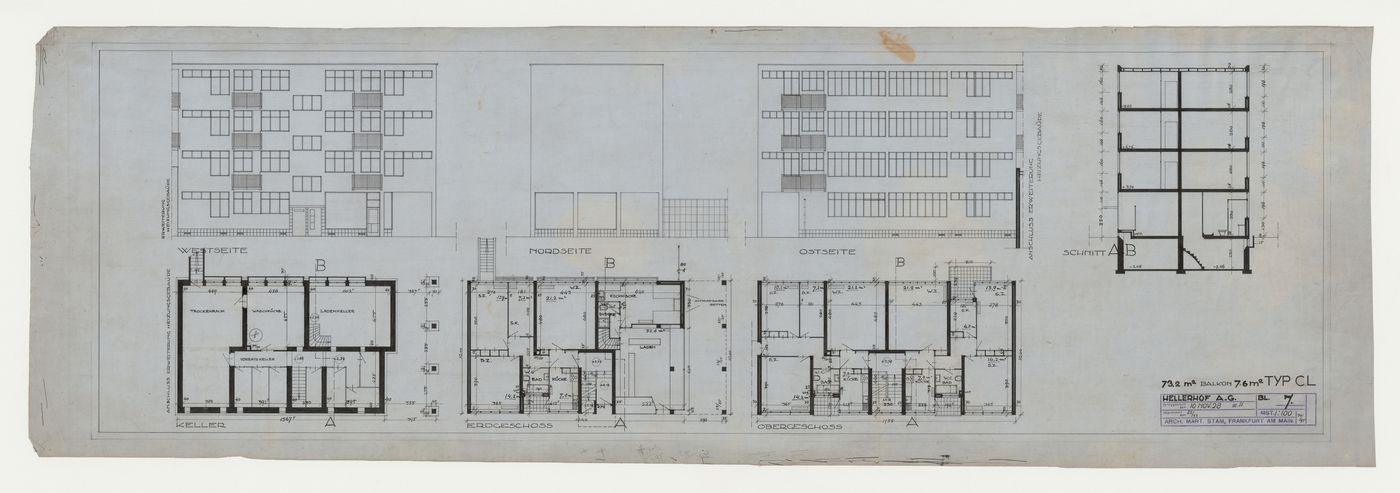

Basement, ground, and first floor plans, north, east and west elevations, and section for a type CL housing unit, Hellerhof Housing Estate, Frankfurt am Main, Germany

People:

Mart Stam (architect)
Mart Stam (draughtsman)
Aktiengesellschaft Hellerhof (client)

Title:

Basement, ground, and first floor plans, north, east and west elevations, and section for a type CL housing unit, Hellerhof Housing Estate, Frankfurt am Main, Germany

Date:

10 November 1928, revised 22 November 1928

Form:
drawings

Quantity / Object type:
1 drawing(s)

Stage and Purpose:

design development drawings

Technique and media:

Pen and black ink over graphite

Dimensions:

sheet: 32.4 x 102.2 cm

Reference number:

DR1984:1109

Drawing Type:

line drawings
mechanical drawings (tool-aided drawings)

Method of Projection:

plans (drawings)
ground plan
section
elevations (drawings)

Point of View:

exterior views
interior view
plan views

Physical characteristics and technical requirements:

- A pen and black ink border frames the drawing.

Inscription:

dated, signed and inscribed - by the architect, in pen and black ink, l.r.: "10 NOV. 28 M.ST. / [with scale] / 30//95" [within stamp] stamped - in purple ink, l.r.: "fertiggestellt / den [with date and drawing number] / abgeändert / den [with date] MST. [with scale] / ARCH.MART.STAM, FRANKFURT AM MAIN" inscribed and numbered - by the draughtsman, in pen and black ink, l.r.: "73.2 m BALKON 7.6 m TYP CL" and "HELLERHOF A.G. / BL. 7." [within stamp]; and throughout: with dimensions, roof functions, plan, section, and elevation orientations dated - by an unknown hand, in pen and black ink, l.r.: "22//11" [within stamp]

Subject:

architecture

Credit line:
Collection Centre Canadien d'Architecture/
Canadian Centre for Architecture, Montréal
