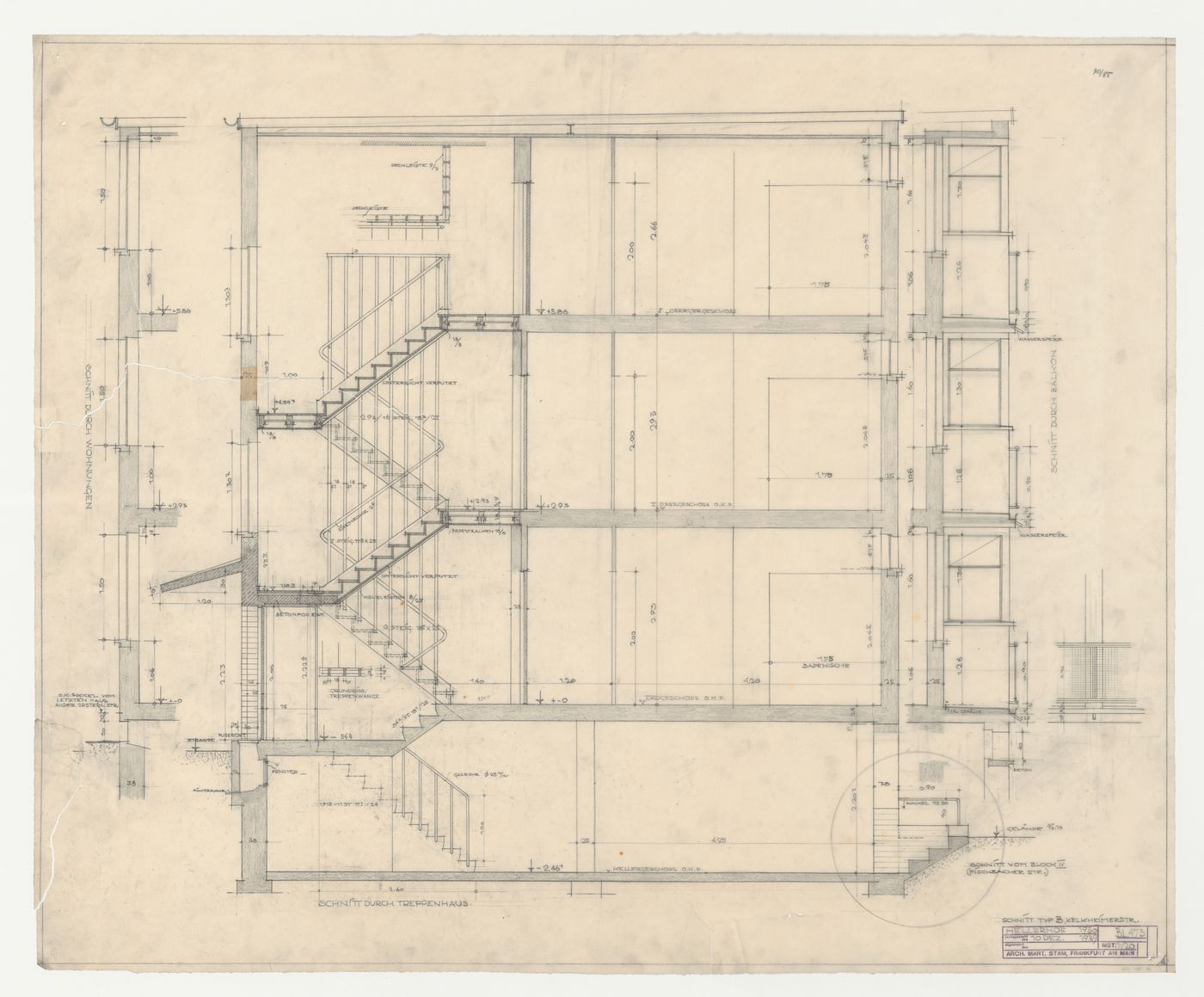

Section for a type B housing unit, Hellerhof Housing Estate, Frankfurt am Main, Germany

People:

Mart Stam (draughtsman)
Mart Stam (architect)
Aktiengesellschaft Hellerhof (client)

Title:

Section for a type B housing unit, Hellerhof Housing Estate, Frankfurt am Main, Germany

Date:

10 December 1929

Form:
drawings

Quantity / Object type:
1 drawing(s)

Stage and Purpose:

design development drawing

Technique and media:

Graphite

Dimensions:

sheet: 70.9 x 86.6 cm

Reference number:

DR1984:1152

Drawing Type:

line drawing
mechanical drawing (tool-aided drawing)

Method of Projection:

section

Point of View:

interior view

Physical characteristics and technical requirements:

- Large losses at upper left and lower left of sheet. A graphite border frames the drawing.

Inscription:

inscribed, numbered and dated - by the draughtsman, in graphite, l.r.: "SCHNITT TYP B KELKHEIMERSTR." and "HELLERHOF 1930 / BL.473 / 10 DEZ. 1929 / [with scale]" [within stamp]; and throughout: with dimensions and specifications signed - by the architect, in graphite, l.r.: "Stam" stamped - in purple ink, l.r.: "fertiggestellt / den [with date and drawing number] / abgeändert / den [blank space] mst. [with scale] / ARCH. MART STAM, FRANKFURT AM MAIN" inscribed - by an unknown hand, in graphite, u.r.: "70//85"

Subject:

architecture

Credit line:
Collection Centre Canadien d'Architecture/
Canadian Centre for Architecture, Montréal
