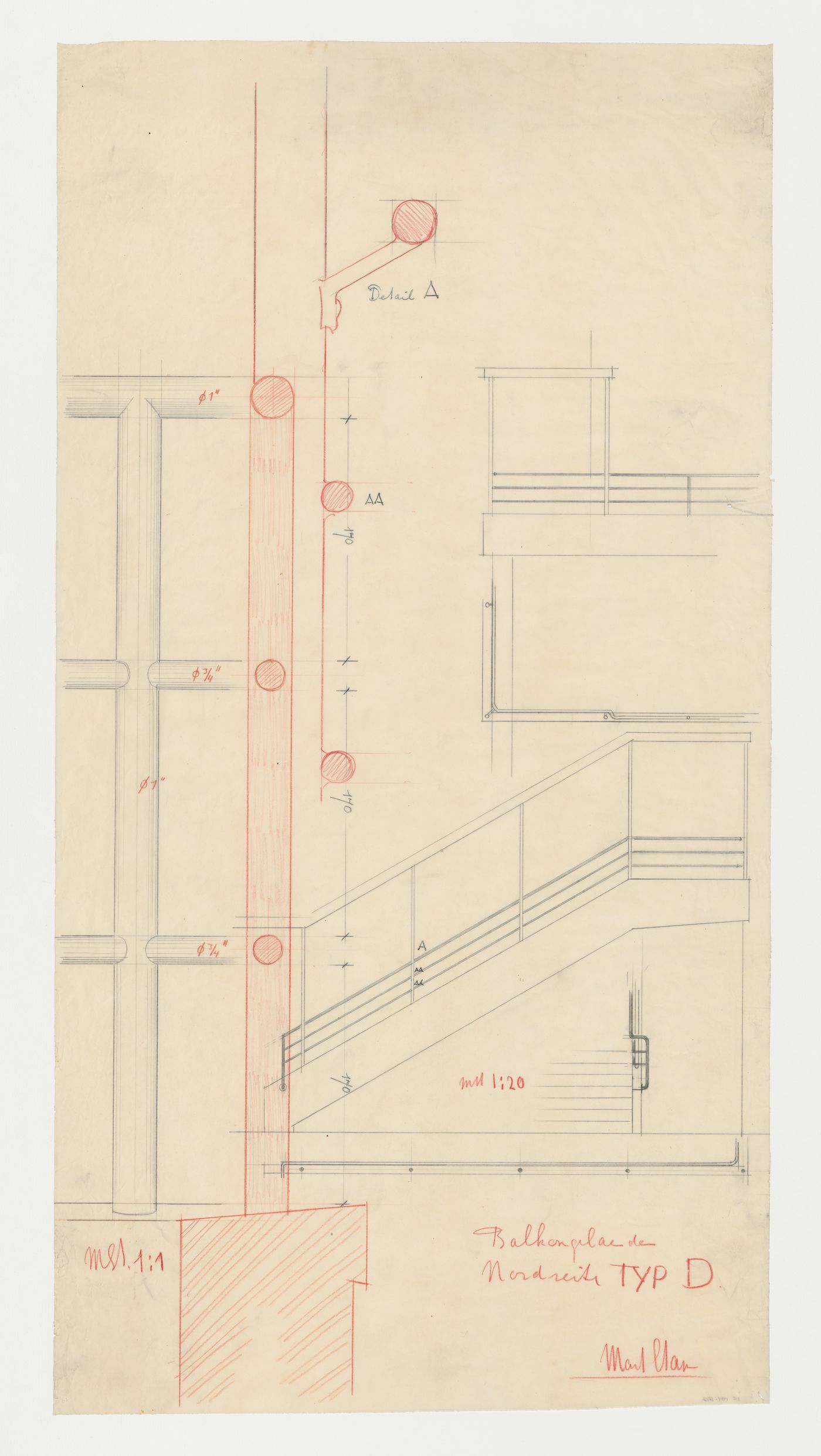

Elevation and sectional details for a balcony railing for the north side of a type D housing unit, Hellerhof Housing Estate, Frankfurt am Main, Germany

People:

Mart Stam (draughtsman)
Mart Stam (architect)
Aktiengesellschaft Hellerhof (client)

Title:

Elevation and sectional details for a balcony railing for the north side of a type D housing unit, Hellerhof Housing Estate, Frankfurt am Main, Germany

Date:

1928-1932

Form:
drawings

Quantity / Object type:
1 drawing(s)

Stage and Purpose:

design development drawings
detail drawings

Technique and media:

Graphite and red pencil

Dimensions:

sheet: 97.2 x 49.9 cm

Reference number:

DR1984:1282

Drawing Type:

line drawings
mechanical drawings (tool-aided drawings)

Method of Projection:

sections (orthographic drawings)
elevation (drawing)

Point of View:

exterior view
interior views

Inscription:

inscribed and signed - by the architect, in red pencil, l.c.: with scale; l.l.: with scale; l.r.: "Balkongelaender / Nordseite Typ D / Mart Stam [underlined]"; and throughout: with dimensions inscribed - by the architect, in pen and black ink, u.c.: "Detail a"; and throughout: with section orientations inscribed - by the draughtsman, in graphite, throughout: with dimensions

Subject:

architecture

Subject Descriptive Terms:

balcony railing

Credit line:
Collection Centre Canadien d'Architecture/
Canadian Centre for Architecture, Montréal
