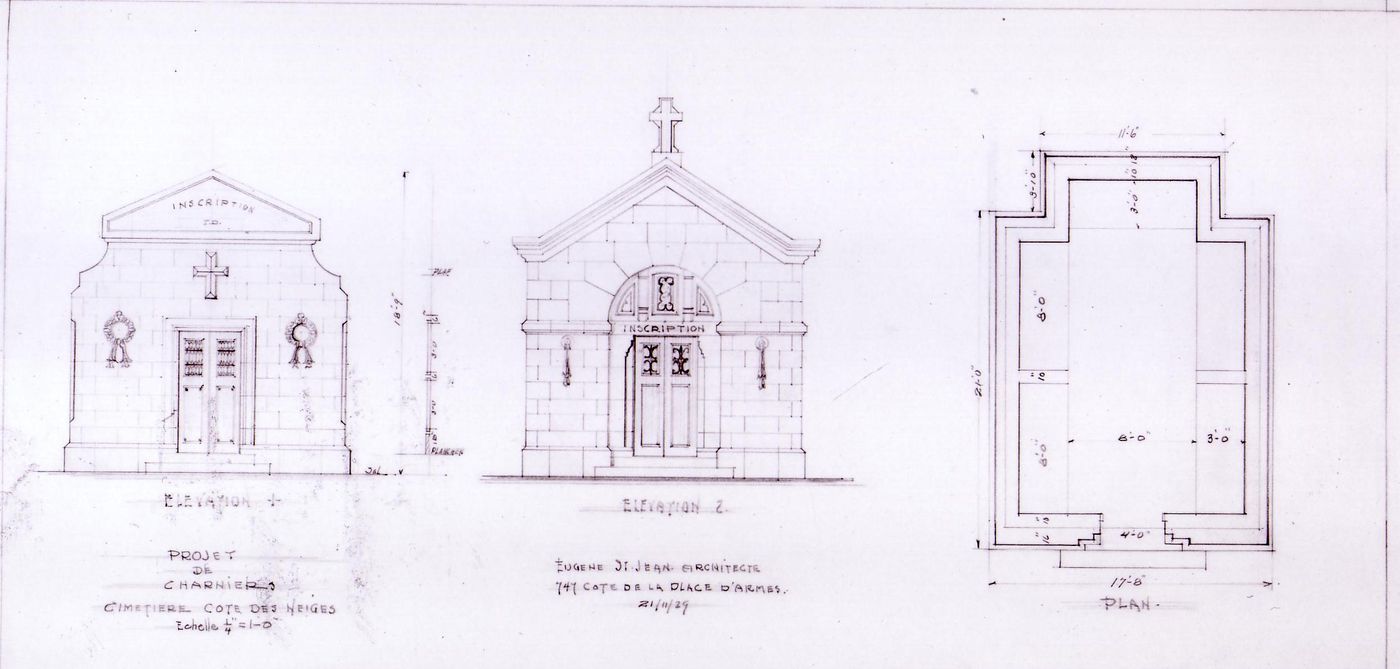

Plan and elevations for ossuaries for Cimetière Notre-Dame des Neiges, Montréal

Part of:

People:

Eugène Saint-Jean (architect)
Eugène Saint-Jean (draughtsman)
Henri-Maurice Perrault (architect)
Fabrique de Notre Dame (archive creator)

Title:

Plan and elevations for ossuaries for Cimetière Notre-Dame des Neiges, Montréal

Date:

21 November 1929

Form:
drawings

Quantity / Object type:
1 drawing(s)

Stage and Purpose:

design development drawings

Technique and media:

Graphite

Dimensions:

sheet: 29.1 x 57.0 cm

Reference number:

AR1996:1001:282

Drawing Type:

line drawings
mechanical drawings (tool-aided drawings)

Method of Projection:

plan (drawing)
elevations (drawings)

Point of View:

general views
exterior views
plan view

Inscription:

inscribed and numbered - by the draughtsman ? in graphite, c.l.: "INSCRIPTION / I.D." [on building elevation] and "ELEVATION -1-"; c.: "plaf"; "INSCRIPTION" [on building elevation]; "plancher"; and "ELEVATION 2."; l.l.: with title; l.r.: "PLAN."; and in various locations: with measurements inscribed and dated - by the draughtsman ? in graphite, b.: "Eugene St. Jean. Architecte / 747 Cote de la Place d'Armes / 21/11/29"
