Floor plans, partial reflected ceiling plan and partial site plan for Vooruit Cooperative houses and meeting hall, Purmerend, Netherlands

People:

J.J.P. Oud (draughtsman)
J.J.P. Oud (architect)

Title:

Floor plans, partial reflected ceiling plan and partial site plan for Vooruit Cooperative houses and meeting hall, Purmerend, Netherlands

Date:

1911

Description:

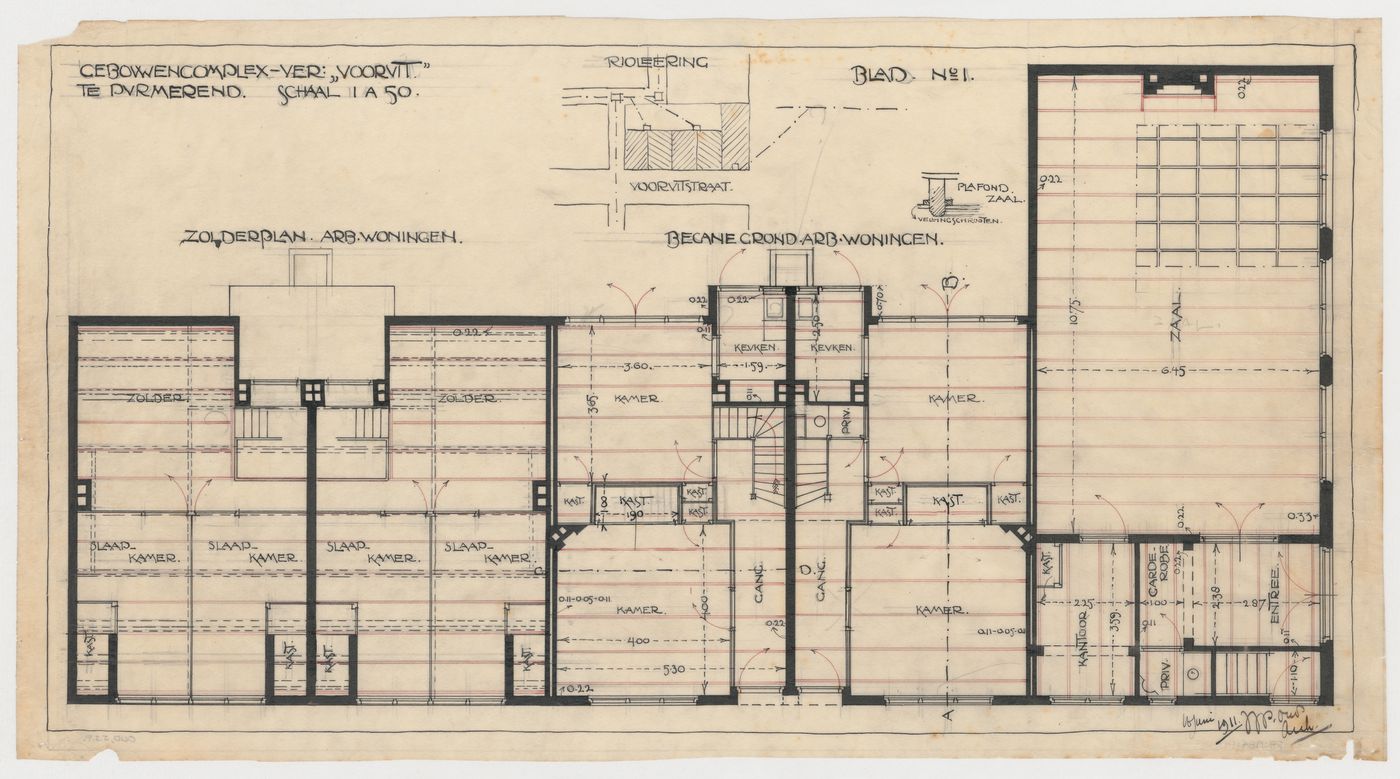

- This drawing shows attic and ground floor plans and a partial site plan showing sewer connections for the Vooruit Cooperative houses and meeting hall complex. A partial reflected ceiling plan is included on the ground plan for the meeting hall. There is a detail for the ceiling construction at the upper centre of the sheet.

Form:
drawings

Quantity / Object type:
1 drawing(s)

Stage and Purpose:

working drawings
detail drawing

Technique and media:

Pen and black ink with graphite

Dimensions:

sheet: 34.5 x 63.2 cm

Reference number:

DR1984:0001

Drawing Type:

line drawings
mechanical drawings (tool-aided drawings)
freehand drawings

Method of Projection:

plans (drawings)
partial plan
reflected ceiling plan
site plan
block plan

Point of View:

partial views
exterior view
interior views
plan views

Physical characteristics and technical requirements:

- A pen and black ink border frames the drawing.

Inscription:

signed, dated and inscribed - by the draughtsman, in pen and black ink, l.r.: "10 Juni 1911. J.J.P. Oud / Arch." [year and Arch. underlined] inscribed and numbered - by the draughtsman, in pen and black ink, u.l.: with title; u.r.: "BLAD. No1" [o underlined twice]; and throughout: with room functions, dimensions, and plan orientations

Subject:

architecture

Subject Descriptive Terms:

joint (connection)

Credit line:
Collection Centre Canadien d'Architecture/
Canadian Centre for Architecture, Montréal
