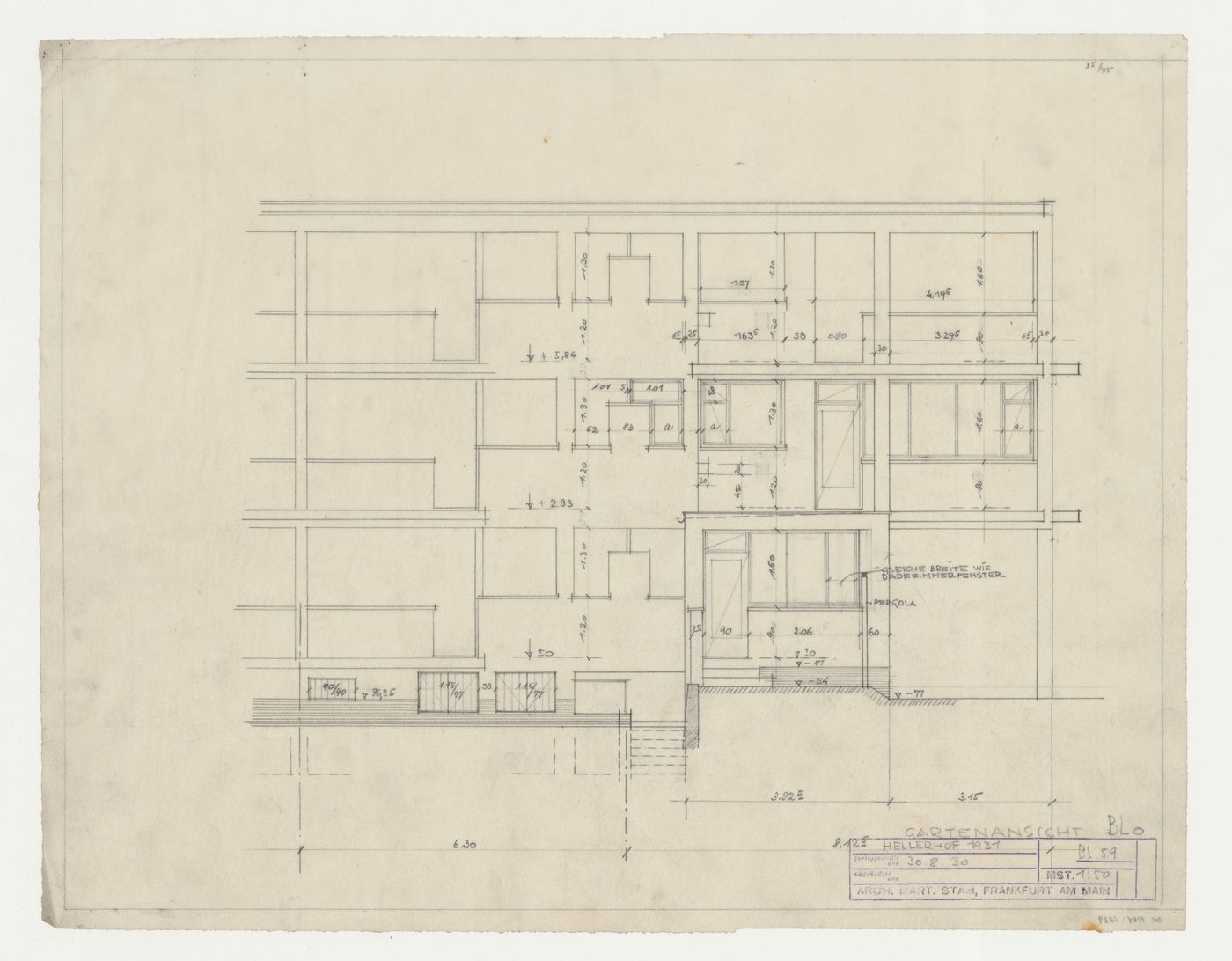

Elevation for type BLO housing units, Hellerhof Housing Estate, Frankfurt am Main, Germany

People:

Mart Stam (draughtsman)
Mart Stam (architect)
Aktiengesellschaft Hellerhof (client)

Title:

Elevation for type BLO housing units, Hellerhof Housing Estate, Frankfurt am Main, Germany

Date:

30 August 1930

Form:
drawings

Quantity / Object type:
1 drawing(s)

Stage and Purpose:

design development drawing

Technique and media:

Graphite

Dimensions:

sheet: 34.6 x 44.0 cm

Reference number:

DR1984:1239

Drawing Type:

line drawing
mechanical drawing (tool-aided drawing)

Method of Projection:

elevation (drawing)

Point of View:

exterior view

Physical characteristics and technical requirements:

- A graphite border frames the drawing.

Inscription:

inscribed - by an unknown hand, in graphite, u.r.: "35//45" stamped - in purple ink, l.r.: "fertiggestellt / den [with date and drawing number] / abgeändert / den [blank space] MST. [with scale] / ARCH.MART.STAM, FRANKFURT AM MAIN" inscribed, numbered and dated - by the draughtsman, in graphite, l.r.: "GARTENANSICHT BLO / HELLERHOF 1931 [within scale] / BL.59 [within scale] / 30.8.30 [within scale] / [with scale within stamp]"; and throughout: with dimensions and specifications

Subject:

architecture

Credit line:
Collection Centre Canadien d'Architecture/
Canadian Centre for Architecture, Montréal
