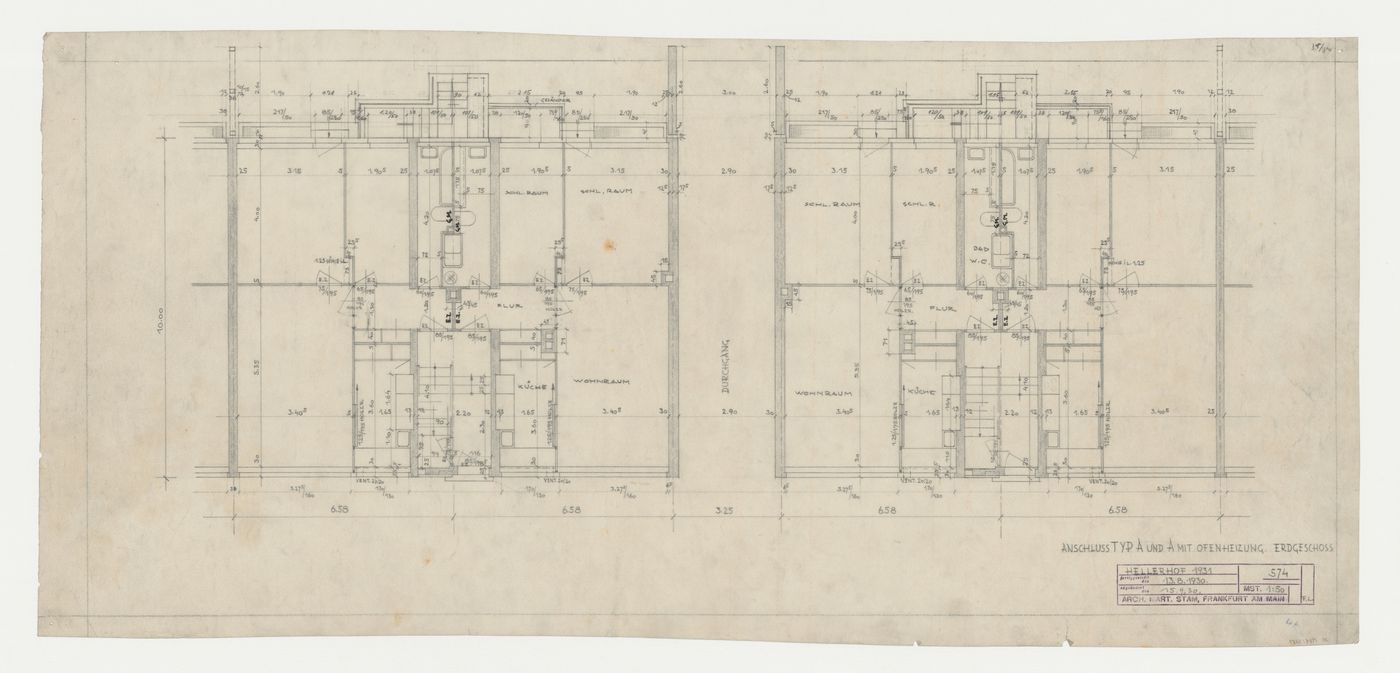

Ground floor plans for a type A annex and a type A annex with oven heating, Hellerhof Housing Estate, Frankfurt am Main, Germany

People:

Franz Lebzelter (draughtsman)
Mart Stam (architect)
Aktiengesellschaft Hellerhof (client)

Title:

Ground floor plans for a type A annex and a type A annex with oven heating, Hellerhof Housing Estate, Frankfurt am Main, Germany

Date:

13 August 1930, revised 15 September 1930

Form:
drawings

Quantity / Object type:
1 drawing(s)

Stage and Purpose:

design development drawings

Technique and media:

Graphite

Dimensions:

sheet: 35.7 x 79.2 cm

Reference number:

DR1984:1251

Drawing Type:

line drawings
mechanical drawings (tool-aided drawings)

Method of Projection:

plans (drawings)
ground plans

Point of View:

interior views
plan views

Physical characteristics and technical requirements:

- A graphite border frames the drawing.

Inscription:

stamped - in purple ink, l.r.: "fertiggestellt / den [with date and drawing number] / abgeändert / den [blank space] MST. [with scale] / ARCH. MART STAM, FRANKFURT AM MAIN" inscribed, numbered, dated and signed - by the draughtsman, in graphite, l.r.: "ANSCHLUSS TYP A UND A MIT OFENHEIZUNG. ERDGESCHOSS" and within stamp "HELLERHOF 1931 / 574 / 13.8.1930. / 15.9.30 / [with scale] / F.L."; and throughout: with room functions, dimensions, and specifications inscribed - by the draughtsman, in pen and black ink, throughout: with specifications inscribed - by an unknown hand, in graphite, u.r.: "34//80" inscribed - by an unknown hand, in blue pencil, l.r.: "4x"

Subject:

architecture

Credit line:
Collection Centre Canadien d'Architecture/
Canadian Centre for Architecture, Montréal
