William B. Greene House, Aurora, Illinois: Elevations, ground plan and foundation plan for the garage

People:

Harry Franklin Robinson (architect)
Harry Franklin Robinson (draughtsman)

Title:

William B. Greene House, Aurora, Illinois: Elevations, ground plan and foundation plan for the garage

Date:

printed ca. 1917

Form:
drawings

Quantity / Object type:
1 reprographic copy(ies)

Stage and Purpose:

working drawing

Technique and media:

Blueprint with graphite addition

Dimensions:

sheet: 45.6 x 66.6 cm

Reference number:

DR1987:0239

Drawing Type:

line drawings
mechanical drawings (tool-aided drawings)
sketch

Method of Projection:

plans (drawings)
foundation plan
elevations (drawings)

Point of View:

general views

Physical characteristics and technical requirements:

- Sheets DR1987:0239 and DR1987:0240 are joined at the left edge with a strip of paper folded over and stapled three times. -- Sheet is torn at the r. edge.

Inscription:

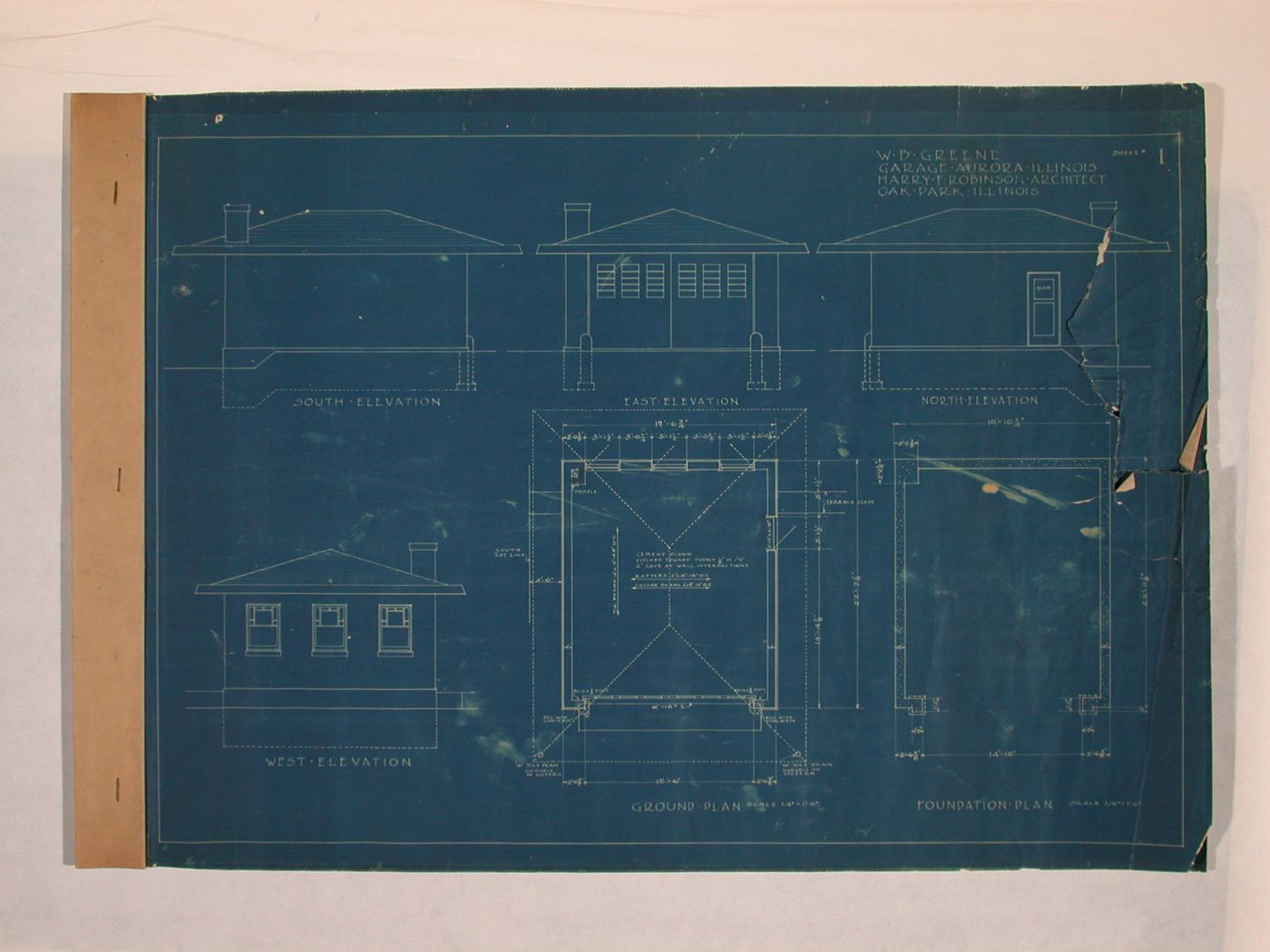

inscribed and numbered - by the draughtsman, on the original, u.r.: with title and "HARRY.F.ROBINSON.ARCHITECT / OAK.PARK.ILLINOIS." and "SHEET #1"; c.l.: "SOUTH ELEVATION"; c.: "EAST.ELEVATION"; c.r.: NORTH ELEVATION"; l.l.: "WEST ELEVATION"; b.: "GROUND PLAN"; l.r.: "FOUNDATION PLAN"; and in various locations: with measurements and construction notes"

Subject:

architecture

Credit line:
Collection Centre Canadien d'Architecture/
Canadian Centre for Architecture, Montréal
