Plan, elevations, broken-out section and details for a chair for terraced housing, Weissenhofsiedlung, Stuttgart, Germany

People:

J.J.P. Oud (architect)
J.J.P. Oud (draughtsman)

Title:

Plan, elevations, broken-out section and details for a chair for terraced housing, Weissenhofsiedlung, Stuttgart, Germany

Date:

printed 1927

Description:

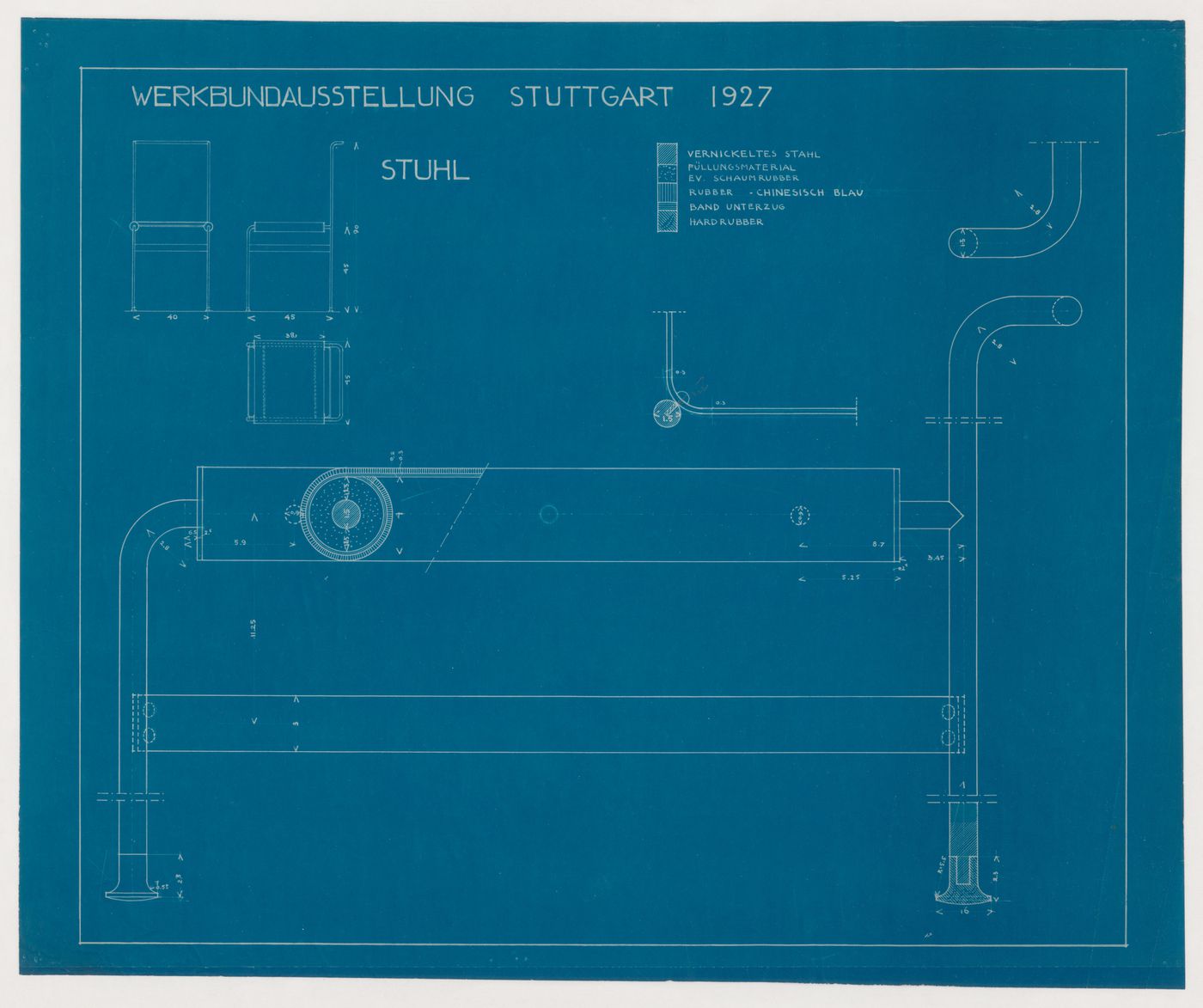

- A legend at the top of the sheet indicates materials for a chair for terraced housing, Weissenhofsiedlung, Stuttgart: "vernickeltes stahl" nickel plated steel, "füllungsmaterial" filling material, "ev schalmrubber" foam rubber, "rubber - chinesisch blau" chinese blue rubber, "band unterzug" strip floor joist, and "hard rubber".

Form:
drawings

Quantity / Object type:
1 reprographic copy(ies)

Stage and Purpose:

working drawings
detail drawings

Technique and media:

Blueprint

Dimensions:

sheet: 51.2 x 63.0 cm

Reference number:

DR1984:0549

Drawing Type:

line drawings
mechanical drawings (tool-aided drawings)

Method of Projection:

plan (drawing)
broken-out section
elevations (drawings)

Point of View:

exterior views
interior views
plan views

Physical characteristics and technical requirements:

- A line border frames the print.

Inscription:

dated and inscribed - by the draughtsman, on the original, t.: with title and "1927"; and throughout: with dimensions inscribed - by an unknown hand, in graphite, verso, c.l. to l.l.: "Details Stoelen Stuttgart"

Subject:

interior design

Subject Descriptive Terms:

chair
joints (connections)

Credit line:
Collection Centre Canadien d'Architecture/
Canadian Centre for Architecture, Montréal
