Two sections for a central-plan church

People:

Virginio Bracci (draughtsman)
Virginio Bracci (architect)
Pietro Bracci (architect)
Pietro Bracci (draughtsman)

Title:

Two sections for a central-plan church

Date:

between 1755 and 1758

Description:

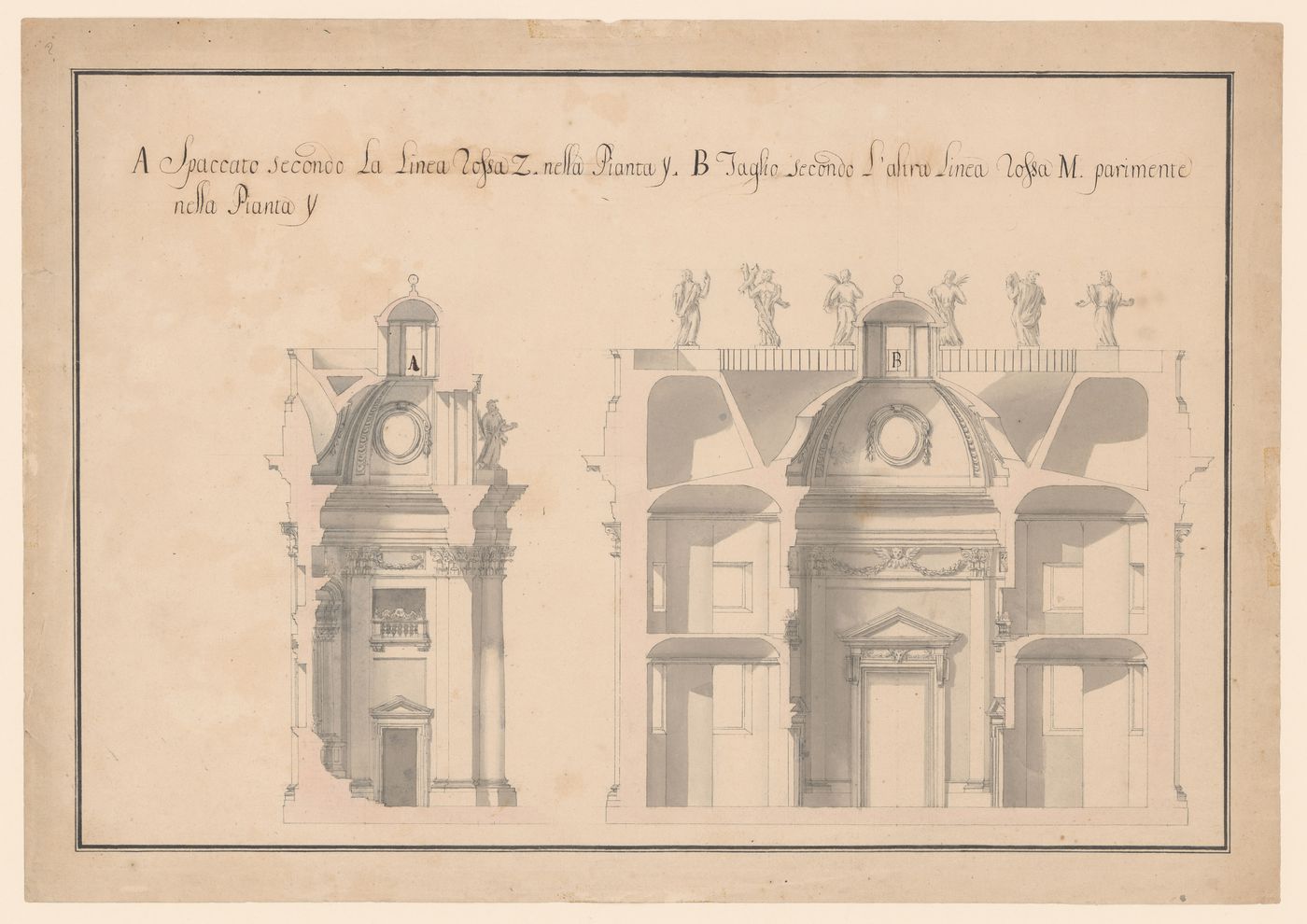

- Two sections through a building, identified as a church by the domed central space and the statues of saints and martyrs on the roofline. The interior views include some details of stuccowork on the walls and dome.

Form:
drawings

Quantity / Object type:
1 drawing(s)

Stage and Purpose:

presentation drawing (proposal)
record drawing

Technique and media:

Pen and black ink and grey and pink wash over traces of graphite ?

Dimensions:

sheet: 36.6 x 53.0 cm

Reference number:

DR1966:0001:099

Drawing Type:

finished drawings

Method of Projection:

sections (orthographic drawings)

Point of View:

interior view

Inscription:

inscribed - by the draughtsman, in pen and brown ink, u.c.: with title; c.l.: "A"; and c.r.: "B" inscribed - by an unknown hand, in graphite, u.l.: "?" numbered - by an unknown hand, in graphite, verso, l.r.: "105" [written sideways]

Subject:

architecture
interior design

Subject Descriptive Terms:

church
central-plan church

Credit line:
Collection Centre Canadien d'Architecture/
Canadian Centre for Architecture, Montréal
