Wayfarers' Chapel, Palos Verdes, California: Section and plan for details for the interior truss lighting fixtures for the chapel

23 January 1957

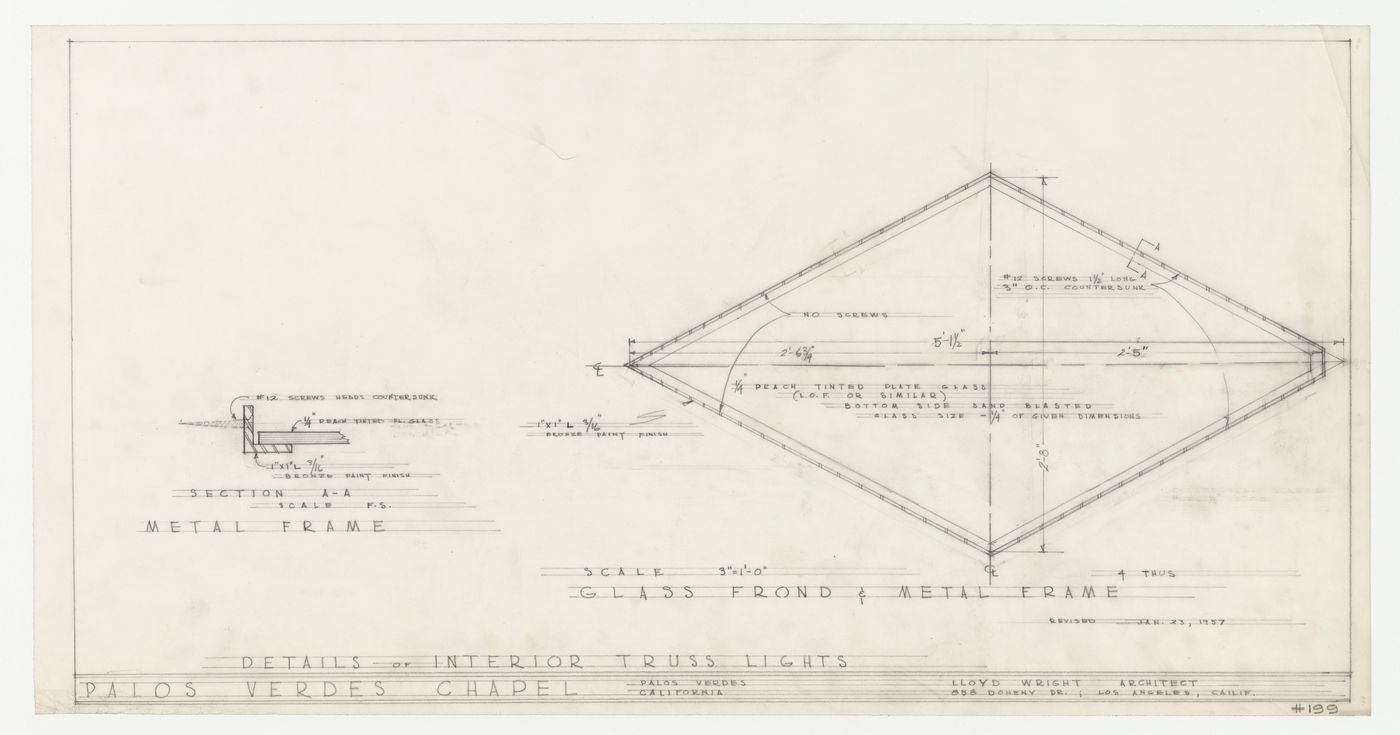

- This sheet of drawings for interior truss lighting fixtures for Wayfarers' Chapel, Palos Verdes, California, shows a glass sheet called a "frond"; it is to be attached to the redwood beams in front of the light bulbs (DR1987:0570).

• dessin d'exécution
• dessin de détail

Graphite

sheet: 37.1 x 71.1 cm

DR1987:0564

• line drawings
• mechanical drawings (tool-aided drawings)

• plan (drawing)
• section

• general view
• partial view

inscribed and dated - by the draughtsman, in graphite, l.l. to b.: with title; l.r.: "REVISED JAN. 23, 1957 / LLOYD WRIGHT, ARCHITECT / 858 DOHENY DR.; LOS ANGELES, CALIF."; l.l.: "METAL FRAME"; l.c. to l.r.: "GLASS FRONT & METAL FRAME"; and in various locations: with measurements and consctruction notes numbered - by the architect's son ? in graphite, l.r.: "#199" [job number]
