• Mart Stam (architect)
• Mart Stam (draughtsman)
• Aktiengesellschaft Hellerhof (client)

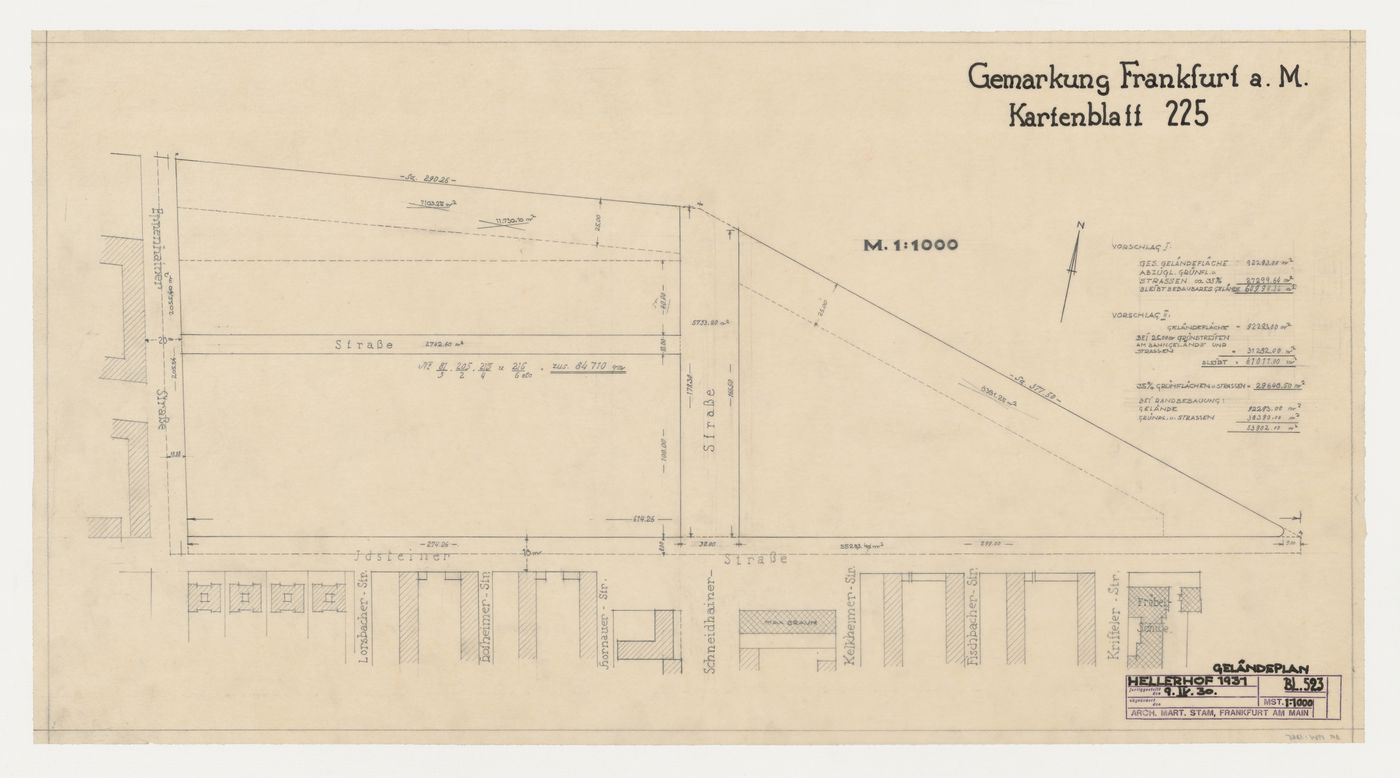

Site plan for Hellerhof Housing Estate, Frankfurt am Main, Germany

9 April 1930

• design development drawing

Graphite

sheet: 38.7 x 73.2 cm

DR1984:1265

• line drawing
• mechanical drawing (tool-aided drawing)

• site plan

• exterior view
• plan view

- A graphite border frames the drawing.

stamped - in purple ink, l.r.: "fertiggestellt / den [with date and drawing number] / abgeändert / den [blank space] MST. [with scale] / ARCH. MART STAM, FRANKFURT AM MAIN" inscribed, numbered and dated - by the draughtsman, in pen and black ink, l.r.: "GELÄNDEPLAN" and "HELLERHOF 1931 / BL.523 / 9.IV.30 / [with scale]" [within stamp] inscribed - by an unknown hand, in pen and black ink, u.r.: "Gemarkung Frankfurt a.M. / Kartenblatt 225" inscribed - by the draughtsman, in graphite, u.c.: with scale; c.r.: with compass direction; and throughout: with dimensions, street names, and specifications
