Ampliação do Casino e Restaurante Winkler [Winkler Casino and restaurant extension], Salzburg, Austria, 1986

Ampliação do Casino e Restaurante Winkler [Winkler Casino and restaurant extension], Salzburg, Austria, 1986

Part of

People

  • Alvaro Siza (archive creator)
  • Alvaro Siza (architect)

Title

Ampliação do Casino e Restaurante Winkler [Winkler Casino and restaurant extension], Salzburg, Austria, 1986

Dates of creation

1986-2012

Level of archival description

Project

Extent and Medium

  • 118 drawings (including 69 reprographic copies)
  • 82 photographic materials
  • 0.02 linear metres of textual material

Scope and Content

This project series documents the Ampliação do Casino e Restaurante Winkler in Salzburg, Austria. While the records were held in the office’s archives this project was assigned the number 37/80. The office assigned the date 1986 to this project.

The project files document the competition for the Winkler Casino and restaurant extension. Proposed modifications to the building included the expansion of the entrance, gambling room and catering facilities, as well as improving the administrative and technical services spaces. The project was a collaboration with José Paulo Santos, Jorge Nuno Monteiro and José Luîs Carvalhos Gomes. Siza and his team won the first prize for the competition, but the project was not realized.

Documenting this project are sketches, studies, competition drawings and drawings of the exisiting building. Textual materials include articles of the project. Photographic materials document the models and project site.

Reference Number

AP178.S1.1986.PR06

Arrangement

Materials in this project series were compiled from multiple accessions. Materials within each accession were arranged by Álvaro Siza’s office and have been kept in this order.

Location

Salzburg Austria

Credit line

When citing the collection as a whole, use the citation: Álvaro Siza fonds, Collection Centre Canadien d’Architecture/Canadian Centre for Architecture, Montréal. When citing specific collection material, please refer to the object’s specific credit line.

Language of material

German, Portuguese

Inventory

Sort by:

  • Actions:
    See more Close
    • Reference Number: AP178.S1.1986.PR06.001
    • Title: Sketches, Ampliação do Casino e Restaurante Winkler, Salzburg
    • Dates of creation: ca. 1986
    • Form: drawings
    • Catalogued items within this file 3

    People:

    • Alvaro Siza (archive creator)

    Description:

    Original file title: Concurso -Salzgurgo

    Quantity / Object type:

    1 File

    Extent and Medium:

    • 2 ink and pencil drawings on paper, 1 ink pencil drawing on cardboard

    Dimensions:

    Sheet: 21 x 30 cm

    Credit line:

    Álvaro Siza fonds
    Collection Centre Canadien d'Architecture/
    Canadian Centre for Architecture, Montréal
    Don d’Álvaro Siza/
    Gift of Álvaro Siza

    Folder Number:

    178-502-01

    Objects that have been catalogued:

      • ARCH400969

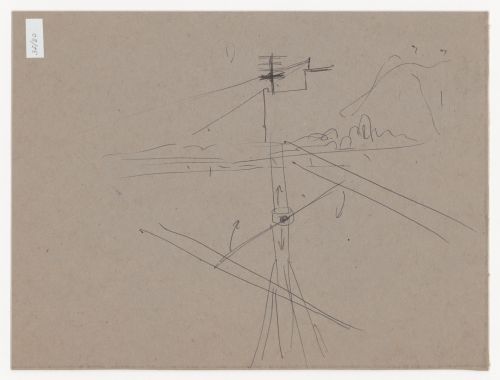

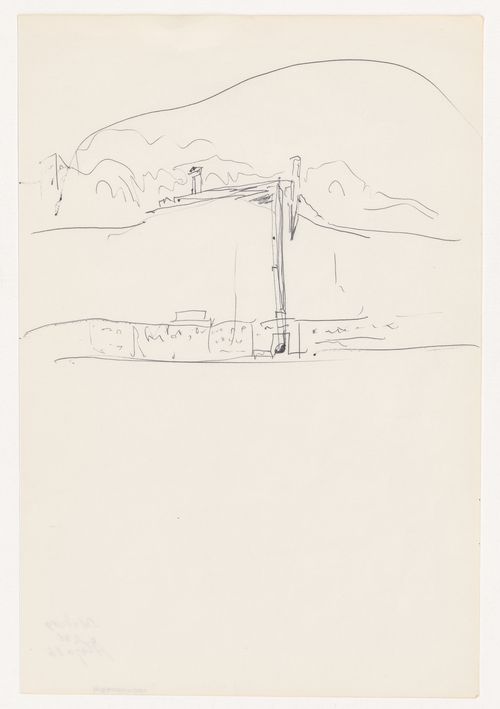

      • Sketch for Ampliação do Casino e Restaurante Winkler [Winkler Casino and restaurant extension], Salzburg, Austria
      • Form: drawings
      • Add to folder
      • ARCH400970

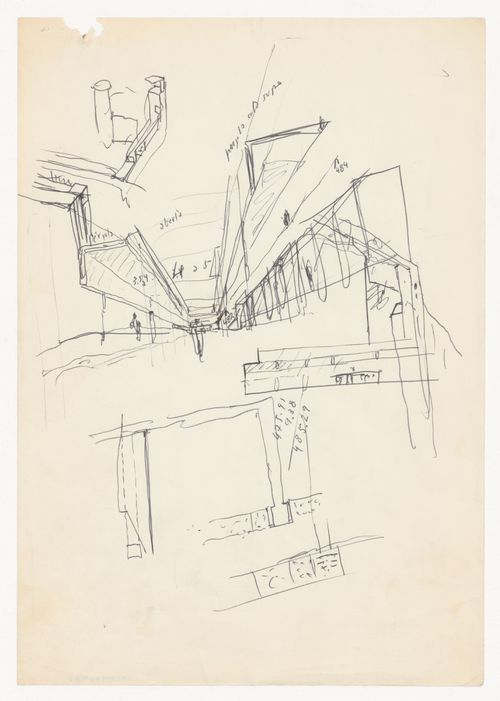

      • Sketches with annotations for Ampliação do Casino e Restaurante Winkler [Winkler Casino and restaurant extension], Salzburg, Austria
      • Form: drawings
      • Add to folder
      • ARCH400971
      • Sketches for Ampliação do Casino e Restaurante Winkler [Winkler Casino and restaurant extension], Salzburg, Austria
      • Form: drawings
      • Add to folder
  • Actions:
    See more Close
    • Reference Number: AP178.S1.1986.PR06.002.1
    • Title: Studies and plans of the existing building, Ampliação do Casino e Restaurante Winkler, Salzburg (folder 1 of 3)
    • Dates of creation: ca. 1986
    • Form: drawings
    • Catalogued items within this file 0

    People:

    • Alvaro Siza (archive creator)

    Description:

    Original file title: Salisburg - Estudos Arq. Siza - Estudos/Matrizes collaboradores

    Nota: Conferir os com Arq. Siza

    Quantity / Object type:

    1 File

    Extent and Medium:

    • 23 reprographic copies on paper, 18 ink and pencil drawings on paper

    Dimensions:

    Sheet (largest): 48 x 60 cm|Sheet (smallest): 18 x 26 cm

    Credit line:

    Álvaro Siza fonds
    Collection Centre Canadien d'Architecture/
    Canadian Centre for Architecture, Montréal
    Don d’Álvaro Siza/
    Gift of Álvaro Siza

    Related units of description:

    • This file is housed in three separate folders. The second and third portion of this file is housed in AP178.S1.1986.PR06.002.2 and AP178.S1.1986.PR06.002.3

    Folder Number:

    178-499-01

  • Actions:
    See more Close
    • Reference Number: AP178.S1.1986.PR06.002.2
    • Title: Studies and plans of the existing building, Ampliação do Casino e Restaurante Winkler, Salzburg (folder 2 of 3)
    • Dates of creation: ca. 1986
    • Form: drawings
    • Catalogued items within this file 0

    People:

    • Alvaro Siza (archive creator)

    Description:

    Original file title: Salisburg - Estudos Arq. Siza - Estudos/Matrizes collaboradores

    Nota: Conferir os com Arq. Siza

    Quantity / Object type:

    1 File

    Extent and Medium:

    • 18 ink and pencil drawings on paper, 15 reprographic copies on paper

    Dimensions:

    Sheet (largest): 75 x 110 cm|Sheet (smallest): 27 x 70 cm

    Credit line:

    Álvaro Siza fonds
    Collection Centre Canadien d'Architecture/
    Canadian Centre for Architecture, Montréal
    Don d’Álvaro Siza/
    Gift of Álvaro Siza

    Related units of description:

    • This file is housed in three separate folders. The first and third portion of this file is housed in AP178.S1.1986.PR06.002.1 and AP178.S1.1986.PR06.002.3

    Folder Number:

    178-494-07

  • Actions:
    See more Close
    • Reference Number: AP178.S1.1986.PR06.002.3
    • Title: Studies and plans of the existing building, Ampliação do Casino e Restaurante Winkler, Salzburg (folder 3 of 3)
    • Dates of creation: ca. 1986
    • Form: drawings
    • Catalogued items within this file 0

    People:

    • Alvaro Siza (archive creator)

    Description:

    Original file title: Salisburg - Estudos Arq. Siza - Estudos/Matrizes collaboradores

    Nota: Conferir os com Arq. Siza

    Quantity / Object type:

    1 File

    Extent and Medium:

    • 2 ink and pencil drawings on paper

    Dimensions:

    Sheet (largest): 75 x 124 cm|Sheet (smallest): 66 x 121 cm

    Credit line:

    Álvaro Siza fonds
    Collection Centre Canadien d'Architecture/
    Canadian Centre for Architecture, Montréal
    Don d’Álvaro Siza/
    Gift of Álvaro Siza

    Related units of description:

    • This file is housed in three separate folders. The first and second portion of this file is housed in AP178.S1.1986.PR06.002.1 and AP178.S1.1986.PR06.002.2
  • Actions:
    See more Close
    • Reference Number: AP178.S1.1986.PR06.003
    • Title: Competition drawings, Ampliação do Casino e Restaurante Winkler, Salzburg
    • Dates of creation: ca. 1986
    • Form: drawings
    • Catalogued items within this file 7

    People:

    • Alvaro Siza (archive creator)

    Description:

    Original file title: Salisburg - Originais - desenhos do concurso

    Quantity / Object type:

    1 File

    Extent and Medium:

    • 8 ink drawings on translucent paper, 1 reprographic copy on paper

    Dimensions:

    Sheet (largest): 84 x 84 cm|Sheet (smallest): 47 x 57 cm

    Credit line:

    Álvaro Siza fonds
    Collection Centre Canadien d'Architecture/
    Canadian Centre for Architecture, Montréal
    Don d’Álvaro Siza/
    Gift of Álvaro Siza

    Folder Number:

    178-494-08

    Objects that have been catalogued:

      • ARCH400972
      • Plans with guide for internal re-arrangement and extension for Ampliação do Casino e Restaurante Winkler [Winkler Casino and restaurant extension], Salzburg, Austria
      • Form: drawings
      • Add to folder
      • ARCH400973
      • Plan for Ampliação do Casino e Restaurante Winkler [Winkler Casino and restaurant extension], Salzburg, Austria
      • Form: drawings
      • Add to folder
      • ARCH400974
      • Plan for Ampliação do Casino e Restaurante Winkler [Winkler Casino and restaurant extension], Salzburg, Austria
      • Form: drawings
      • Add to folder
      • ARCH400975
      • Elevation for Ampliação do Casino e Restaurante Winkler [Winkler Casino and restaurant extension], Salzburg, Austria
      • Form: drawings
      • Add to folder
      • ARCH400976
      • Elevations for Ampliação do Casino e Restaurante Winkler [Winkler Casino and restaurant extension], Salzburg, Austria
      • Form: drawings
      • Add to folder
      • ARCH400977
      • Elevation for Ampliação do Casino e Restaurante Winkler [Winkler Casino and restaurant extension], Salzburg, Austria
      • Form: drawings
      • Add to folder
      • ARCH400978
      • Axonometric for Ampliação do Casino e Restaurante Winkler [Winkler Casino and restaurant extension], Salzburg, Austria
      • Form: drawings
      • Add to folder
  • Actions:
    See more Close
    • Reference Number: AP178.S1.1986.PR06.004

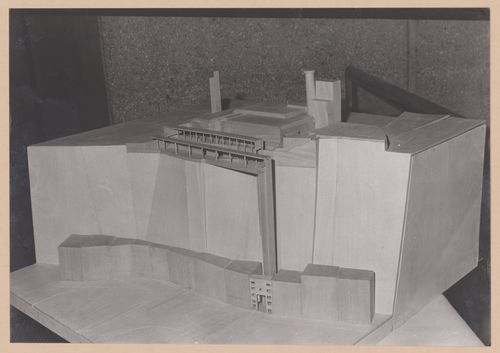

    • Title: Photographs of model, Ampliação do Casino e Restaurante Winkler, Salzburg
    • Dates of creation: ca. 1986
    • Form: photographs
    • Catalogued items within this file 0

    People:

    • Alvaro Siza (archive creator)

    Description:

    Original file title: Concurso - Amplicao do Casino e Restaurante Winkler - Salzgurg

    Siza's office numbered photographs in this file ACRW001-ACRW012 - Diapositivos 35mm - ACRW013-ACRW016

    Quantity / Object type:

    1 File

    Extent and Medium:

    • 5 photographs

    Credit line:

    Álvaro Siza fonds
    Collection Centre Canadien d'Architecture/
    Canadian Centre for Architecture, Montréal
    Don d’Álvaro Siza/
    Gift of Álvaro Siza

    Folder Number:

    178-489-13

  • Actions:
    See more Close
    • Reference Number: AP178.S1.1986.PR06.005

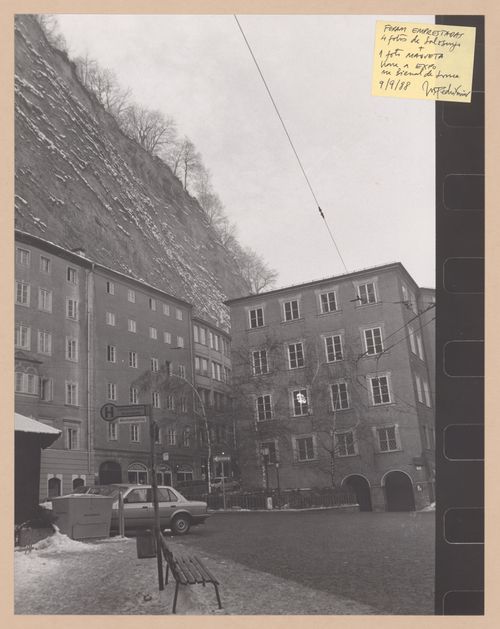

    • Title: Photographs of the area, Ampliação do Casino e Restaurante Winkler, Salzburg
    • Dates of creation: ca. 1986
    • Form: photographs
    • Catalogued items within this file 0

    People:

    • Alvaro Siza (archive creator)

    Description:

    Original file title: Concurso - Amplicao do Casino e Restaurante Winkler - Salzgurg

    Siza's office numbered photographs in this file R-ACRW007-R-ACRW012 (diapositivos 35mm)

    Quantity / Object type:

    1 File

    Extent and Medium:

    • 7 photographs

    Credit line:

    Álvaro Siza fonds
    Collection Centre Canadien d'Architecture/
    Canadian Centre for Architecture, Montréal
    Don d’Álvaro Siza/
    Gift of Álvaro Siza

    Folder Number:

    178-282-14

  • Actions:
    See more Close
    • Reference Number: AP178.S1.1986.PR06.006

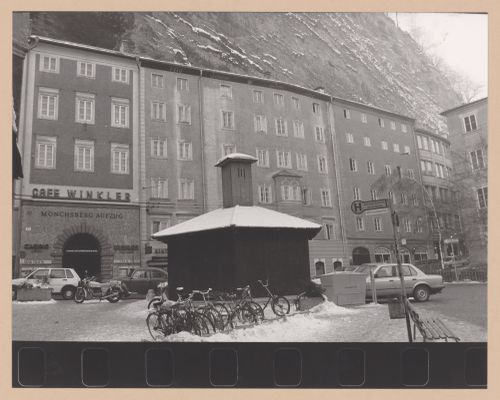

    • Title: Photographs of the area, Ampliação do Casino e Restaurante Winkler, Salzburg
    • Dates of creation: ca. 1986
    • Form: photographs
    • Catalogued items within this file 0

    People:

    • Alvaro Siza (archive creator)

    Description:

    Original file title: Concurso - Amplicao do Casino e Restaurante Winkler - Salzgurg

    Siza's office numbered photographs in this file R-ACRW023-R-ACRW031

    Quantity / Object type:

    1 File

    Extent and Medium:

    • 10 photographs

    Credit line:

    Álvaro Siza fonds
    Collection Centre Canadien d'Architecture/
    Canadian Centre for Architecture, Montréal
    Don d’Álvaro Siza/
    Gift of Álvaro Siza

    Folder Number:

    178-282-16

  • Actions:
    See more Close
    • Reference Number: AP178.S1.1986.PR06.007

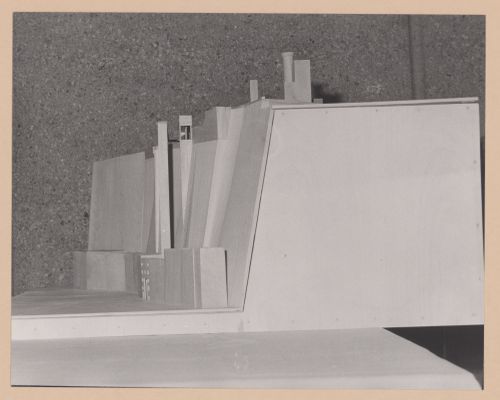

    • Title: Photographs of model, Ampliação do Casino e Restaurante Winkler, Salzburg
    • Dates of creation: ca. 1986
    • Form: photographs
    • Catalogued items within this file 0

    People:

    • Alvaro Siza (archive creator)
    • Carlos Castanheira (photographer)

    Description:

    Original file title: Concurso - Amplicao do Casino e Restaurante Winkler - Salzgurg

    © Carlos Castanheira

    Siza's office numbered photographs in this file ACRW017-ACRW022

    Quantity / Object type:

    1 File

    Extent and Medium:

    • 6 photographs

    Credit line:

    Álvaro Siza fonds
    Collection Centre Canadien d'Architecture/
    Canadian Centre for Architecture, Montréal
    Don d’Álvaro Siza/
    Gift of Álvaro Siza

    Folder Number:

    178-282-15

  • Actions:
    See more Close
    • Reference Number: AP178.S1.1986.PR06.008
    • Title: Photographs of model, Ampliação do Casino e Restaurante Winkler, Salzburg
    • Dates of creation: April 2012
    • Form: photographs
    • Catalogued items within this file 0

    People:

    • Alvaro Siza (archive creator)
    • Teresa Siza (photographer)

    Description:

    Original file title: Concurso - Amplicao do Casino e Restaurante Winkler - © Teresa Siza - Negativos April 2012

    Siza's office numbered photographs in this file ACRW032-ACRW048, R-ACRW002

    Quantity / Object type:

    1 File

    Extent and Medium:

    • 12 120mm negative strips, 1 photograph

    Credit line:

    Álvaro Siza fonds
    Collection Centre Canadien d'Architecture/
    Canadian Centre for Architecture, Montréal
    Don d’Álvaro Siza/
    Gift of Álvaro Siza

    Folder Number:

    178-489-15

  • Actions:
    See more Close
    • Reference Number: AP178.S1.1986.PR06.010.1
    • Title: Project documentation, correspondence, and drawings, Ampliação do Casino e Restaurante Winkler, Salzburg (folder 1 of 2)
    • Dates of creation: 1986-1987
    • Form: drawings, textual records
    • Catalogued items within this file 0

    People:

    • Alvaro Siza (archive creator)

    Description:

    Original file title: Casino Winkler Salisburg

    Reprographic copies feature annotations.

    Quantity / Object type:

    1 File

    Extent and Medium:

    • 7 reprographic copies on paper, other materials

    Dimensions:

    Sheet: 21 x 30 cm

    Credit line:

    Álvaro Siza fonds
    Collection Centre Canadien d'Architecture/
    Canadian Centre for Architecture, Montréal
    Don d’Álvaro Siza/
    Gift of Álvaro Siza

    Related units of description:

    • This file is housed in two separate folders. The second portion of this file is found in folder AP178.S1.1986.PR06.010.2

    Folder Number:

    178-097-05

  • Actions:
    See more Close
    • Reference Number: AP178.S1.1986.PR06.010.2
    • Title: Project documentation, correspondence, and drawings, Ampliação do Casino e Restaurante Winkler, Salzburg (folder 2 of 2)
    • Dates of creation: 1986-1987
    • Form: drawings
    • Catalogued items within this file 0

    People:

    • Alvaro Siza (archive creator)

    Description:

    Original file title: Casino Winkler Salisburg

    Reprographic copies feature annotations.

    Quantity / Object type:

    1 File

    Extent and Medium:

    • 10 reprographic copies on paper

    Dimensions:

    Sheet: 21 x 30 cm

    Credit line:

    Álvaro Siza fonds
    Collection Centre Canadien d'Architecture/
    Canadian Centre for Architecture, Montréal
    Don d’Álvaro Siza/
    Gift of Álvaro Siza

    Related units of description:

    • This file is housed in two separate folders. The second portion of this file is found in folder AP178.S1.1986.PR06.010.1

    Folder Number:

    178-097-06

  • Actions:
    See more Close
    • Reference Number: AP178.S1.1986.PR06.011
    • Title: Articles, Ampliação do Casino e Restaurante Winkler, Salzburg
    • Dates of creation: 1986-1987
    • Form: textual records
    • Catalogued items within this file 0

    People:

    • Alvaro Siza (archive creator)

    Description:

    Original file title: Salisburg Articoli Giorhazi

    Quantity / Object type:

    1 File

    Extent and Medium:

    • 0.01 l.m. of textual records

    Credit line:

    Álvaro Siza fonds
    Collection Centre Canadien d'Architecture/
    Canadian Centre for Architecture, Montréal
    Don d’Álvaro Siza/
    Gift of Álvaro Siza

    Folder Number:

    178-097-07

  • Actions:
    See more Close
    • Reference Number: AP178.S1.1986.PR06.012
    • Title: Slides of drawings, model, and existing building, Ampliação do Casino e Restaurante Winkler, Salzburg
    • Dates of creation: 1986-1987
    • Form: photographs
    • Catalogued items within this file 0

    People:

    • Alvaro Siza (archive creator)

    Description:

    Original file title: Ampliação Casino e Restaurante Winkler

    Siza's office numbered slides in this file ACRW001-ACRW006

    Quantity / Object type:

    1 File

    Extent and Medium:

    • 38 slides

    Credit line:

    Álvaro Siza fonds
    Collection Centre Canadien d'Architecture/
    Canadian Centre for Architecture, Montréal
    Don d’Álvaro Siza/
    Gift of Álvaro Siza

    Folder Number:

    178-503-03

  • Actions:
    See more Close
    • Reference Number: AP178.S1.1986.PR06.013
    • Title: Negatives of the area, Ampliação do Casino e Restaurante Winkler, Salzburg
    • Dates of creation: ca. 1986
    • Form: photographs
    • Catalogued items within this file 0

    People:

    • Alvaro Siza (archive creator)

    Description:

    Original file title: Concurso - Amplicao do Casino e Restaurante Winkler - Salzgurg

    Siza's office numbered photographs in this file R-ACRW010, R-ACRW023 and R-ACRW024

    Quantity / Object type:

    1 File

    Extent and Medium:

    • 3 negatives

    Credit line:

    Álvaro Siza fonds
    Collection Centre Canadien d'Architecture/
    Canadian Centre for Architecture, Montréal
    Don d’Álvaro Siza/
    Gift of Álvaro Siza

    Folder Number:

    178-489-14

  • Actions:
    See more Close
    • Reference Number: AP178.S1.1986.PR06.014
    • Title: Plans, elevations and sections of existing building, Ampliação do Casino e Restaurante Winkler, Salzburg
    • Dates of creation: circa 1986
    • Form: drawings
    • Catalogued items within this file 0

    People:

    • Alvaro Siza (archive creator)

    Description:

    Original file title: Salisburgo, Copia em Papel do Casino Existente

    These are reprographic copies of original drawings that dated from 1975 and 1983.

    Quantity / Object type:

    1 File

    Extent and Medium:

    • 13 reprographic copies, some with annotations

    Dimensions:

    Sheet (largest): 191 x 61 cm Sheet (smallest): 62 x 61 cm

    Physical Description:

    These drawings are rolled.

    Credit line:

    Álvaro Siza fonds
    Collection Centre Canadien d'Architecture/
    Canadian Centre for Architecture, Montréal
    Don d’Álvaro Siza/
    Gift of Álvaro Siza

1
1

Sign up to get news from us

Email address
First name
Last name
By signing up you agree to receive our newsletter and communications about CCA activities. You can unsubscribe at any time. For more information, consult our privacy policy or contact us.

Thank you for signing up. You'll begin to receive emails from us shortly.

We’re not able to update your preferences at the moment. Please try again later.

You’ve already subscribed with this email address. If you’d like to subscribe with another, please try again.

This email was permanently deleted from our database. If you’d like to resubscribe with this email, please contact us

Please complete the form below to buy:
[Title of the book, authors]
ISBN: [ISBN of the book]
Price [Price of book]

First name
Last name
Address (line 1)
Address (line 2) (optional)
Postal code
City
Country
Province/state
Email address
Phone (day) (optional)
Notes

Thank you for placing an order. We will contact you shortly.

We’re not able to process your request at the moment. Please try again later.

Folder ()

Your folder is empty.

Email:
Subject:
Notes:
Please complete this form to make a request for consultation. A copy of this list will also be forwarded to you.

Your contact information
First name:
Last name:
Email:
Phone number:
Notes (optional):
We will contact you to set up an appointment. Please keep in mind that your consultation date will be based on the type of material you wish to study. To prepare your visit, we'll need:
  • — At least 2 weeks for primary sources (prints and drawings, photographs, archival documents, etc.)
  • — At least 48 hours for secondary sources (books, periodicals, vertical files, etc.)
...
